Four Arm Extension Brackets for 140x140 Timber Posts
Couldn't load pickup availability
The Four Arm Extension Pergola Bracket is designed to effortlessly extend the frame of your pergola to the size that best fits your space.
Strong & Durable, Premium Finish, Versatile and Easy to Assemble for instant outdoor elegance.

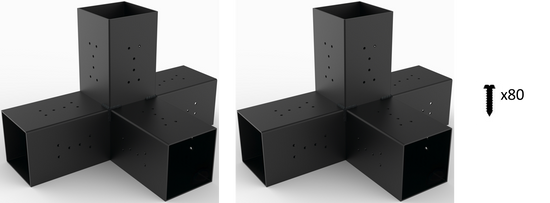

Can be purchased in bundles or separately:
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 business days for Dispatch!
Product Details
Features & Inclusions
Extension Bracket Precision Crafted for 140x140mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

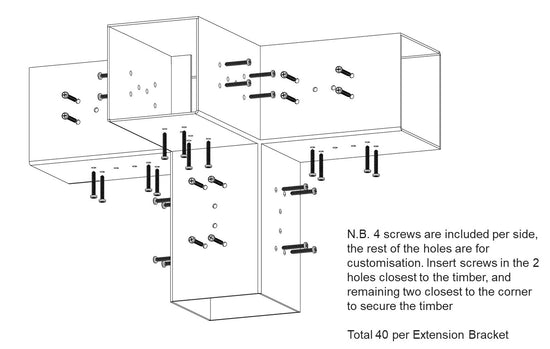

48 x 12g/38mm Black Plated Fastening Screws to fasten your brackets securely to the timber.
80 x Black Plated Fastening screws to fasten brackets securely to timber
Product Specs
Our brackets are designed for optimal fit with 140x140mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

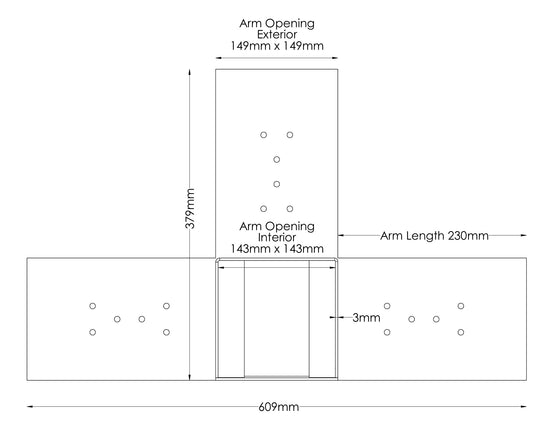

Bracket Measurements:
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm Length: 230 mm
Steel Thickness: 3mm
Bracket Dimensions (L x W x H): 609 x 379 x 379mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Modaprax Tips
For instructions on how to install these base brackets for your Pergola, please access theModaprax Instructions Guide here.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
Modaprax Extension Bracket
The Modaprax Four Arm Extension Bracket extends the frame of your Pergola to the length that best fits your outdoor space.
