Top Rafter Bracket for 140x45 Timber Posts | 8 Pack
Couldn't load pickup availability
Effortlessly customise your pergola with the Top Rafter Pergola Bracket for 140x45mm Timber.
Strong & Durable, Premium Finish, Versatile and Easy to Assemble for instant outdoor elegance.
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 business days for Dispatch!
Product Details
Features & Inclusions

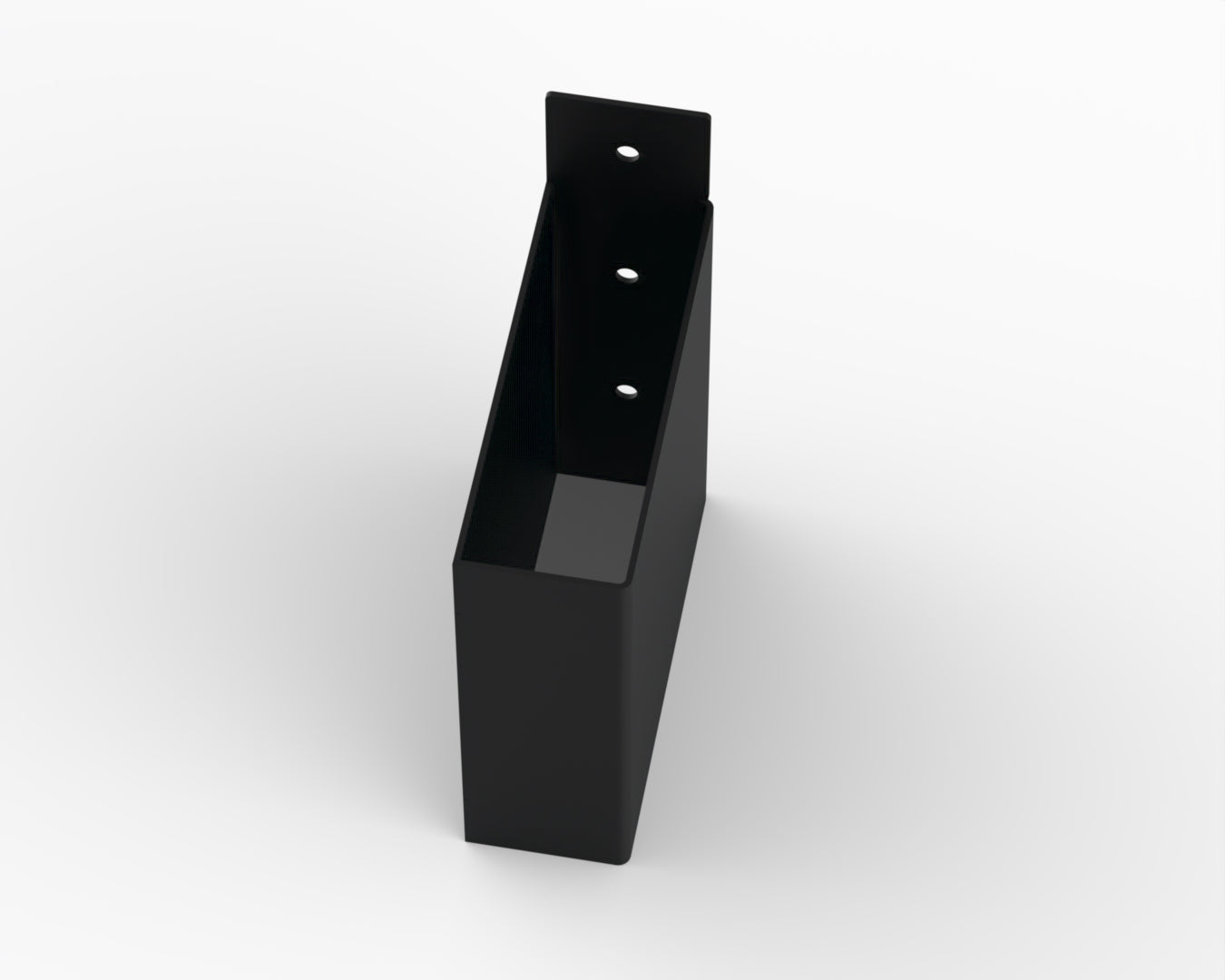

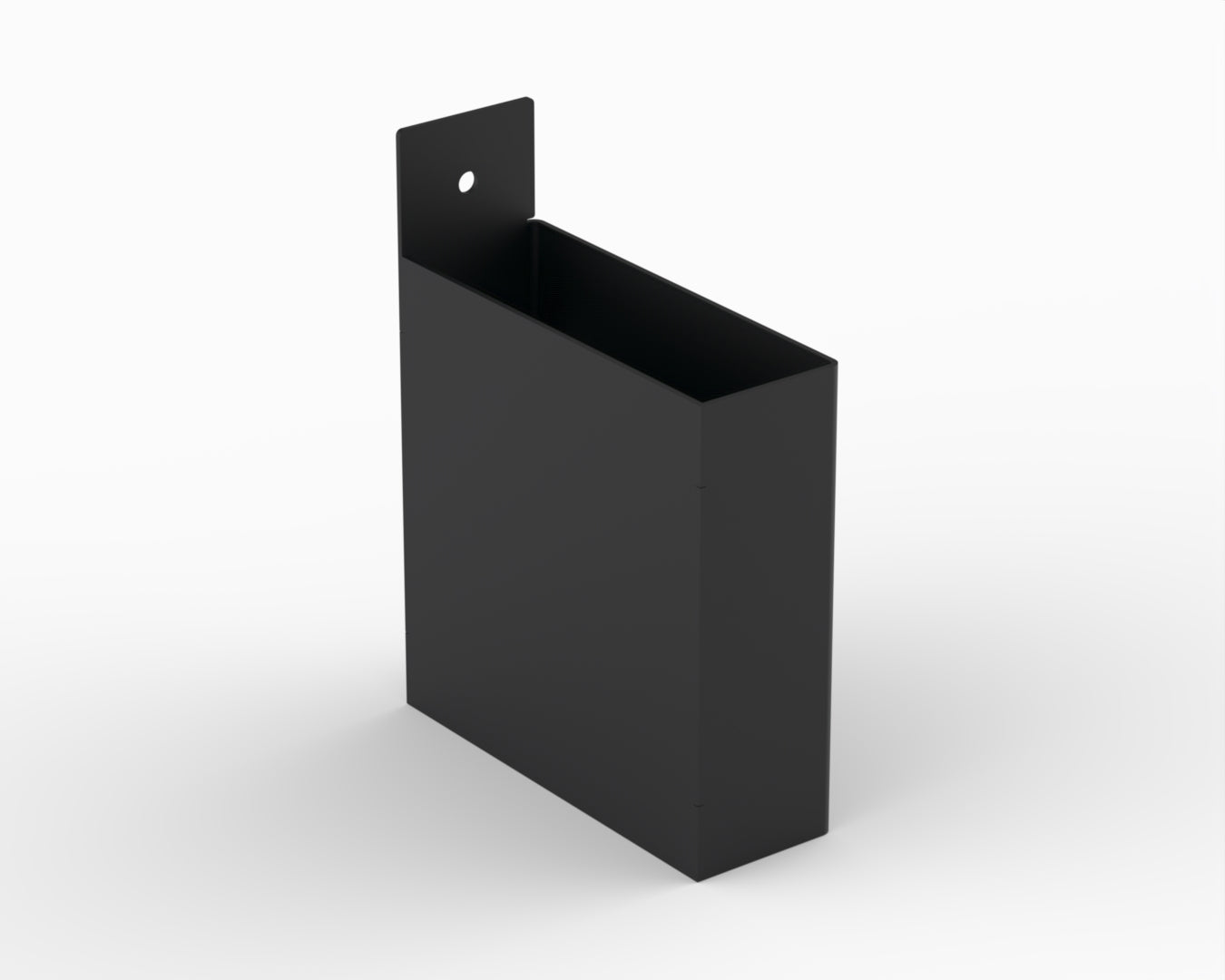

8 x Top Rafter Bracket Precision Crafted for 140x45mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel
Fastening Hardware
24 x 12G 38mm Black Coated Pan Head Self Tapping screws to secure timber to bracket
24 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets to timber.

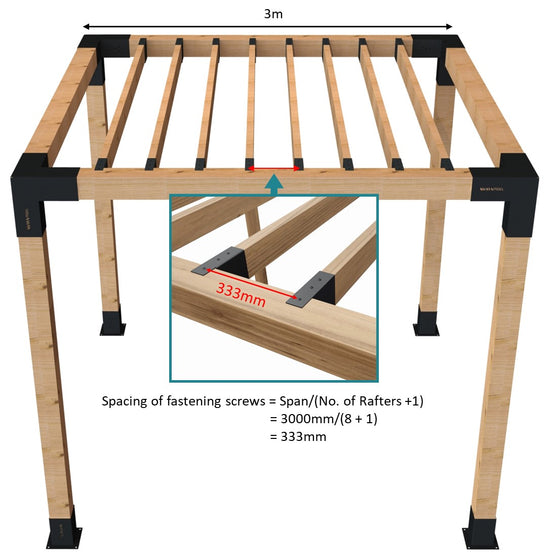

To estimate space between rafter brackets:
Step 1: Measure exact span of your timber frame.
Step 2: Count the number of spaces between rafters (no. of rafters +1).
Step 3: Estimate the space between each rafter fastening point = Span/(no. of rafters +1)
Product Specs
Designed for 140 x 45 timber fit
Arm Opening (Interior): 143 x 48mm
Arm Opening (Exterior): 147 x 52mm
Steel Thickness: 2mm
Bracket dimensions (L x W x H): 169 x 52 x 147mm
Colour: Black (Powder Coated)
Three Fastening Holes: 7mm
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
Modaprax Rafter Bracket (90x35)
The Top Rafter Bracket provides an easy to assemble option to add pergola rafters to your outdoor structure.
Designed to fit 90x35mm timber beams and will go perfect with your 90x90 Modaprax Pergola Bracket.
