Top Rafter Pergola Bracket for 90x45 Timber Posts | 8 Pack
Couldn't load pickup availability
Effortlessly customise your pergola with the Top Rafter Pergola Bracket for 90x45mm Timber.
Strong & Durable, Premium Finish, Versatile and Easy to Assemble for instant outdoor elegance.
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 business days for Dispatch!
Product Details
Features & Inclusions

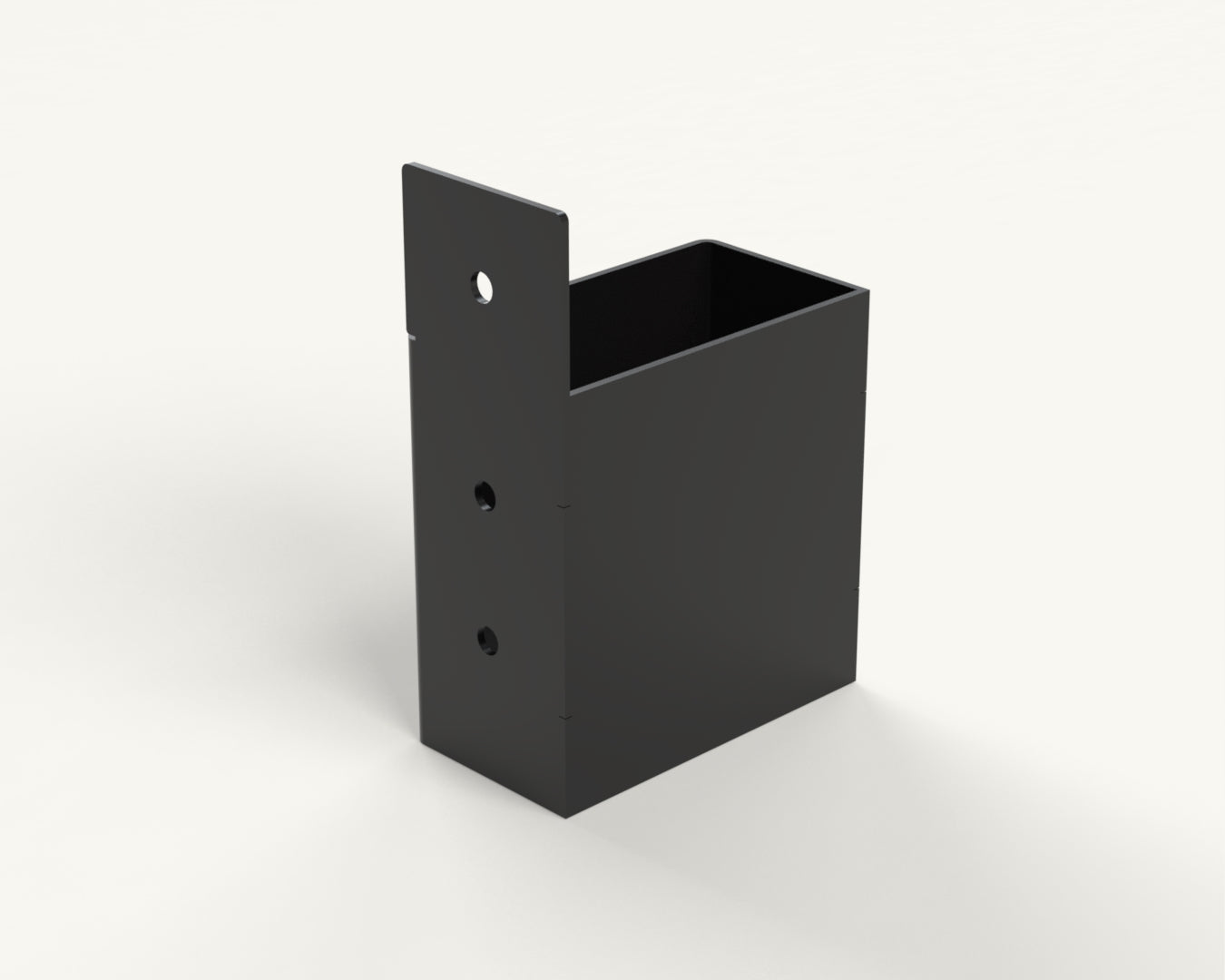

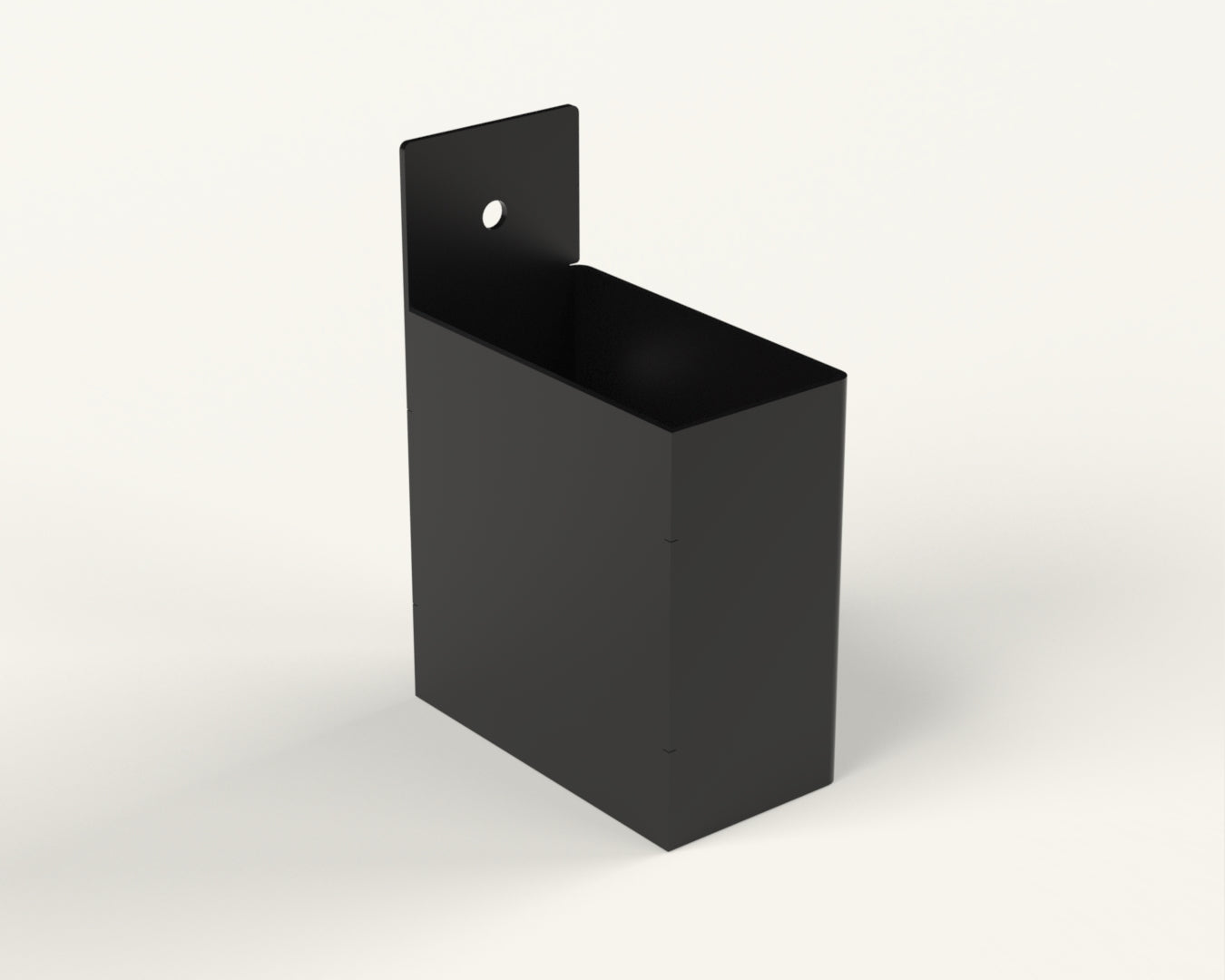

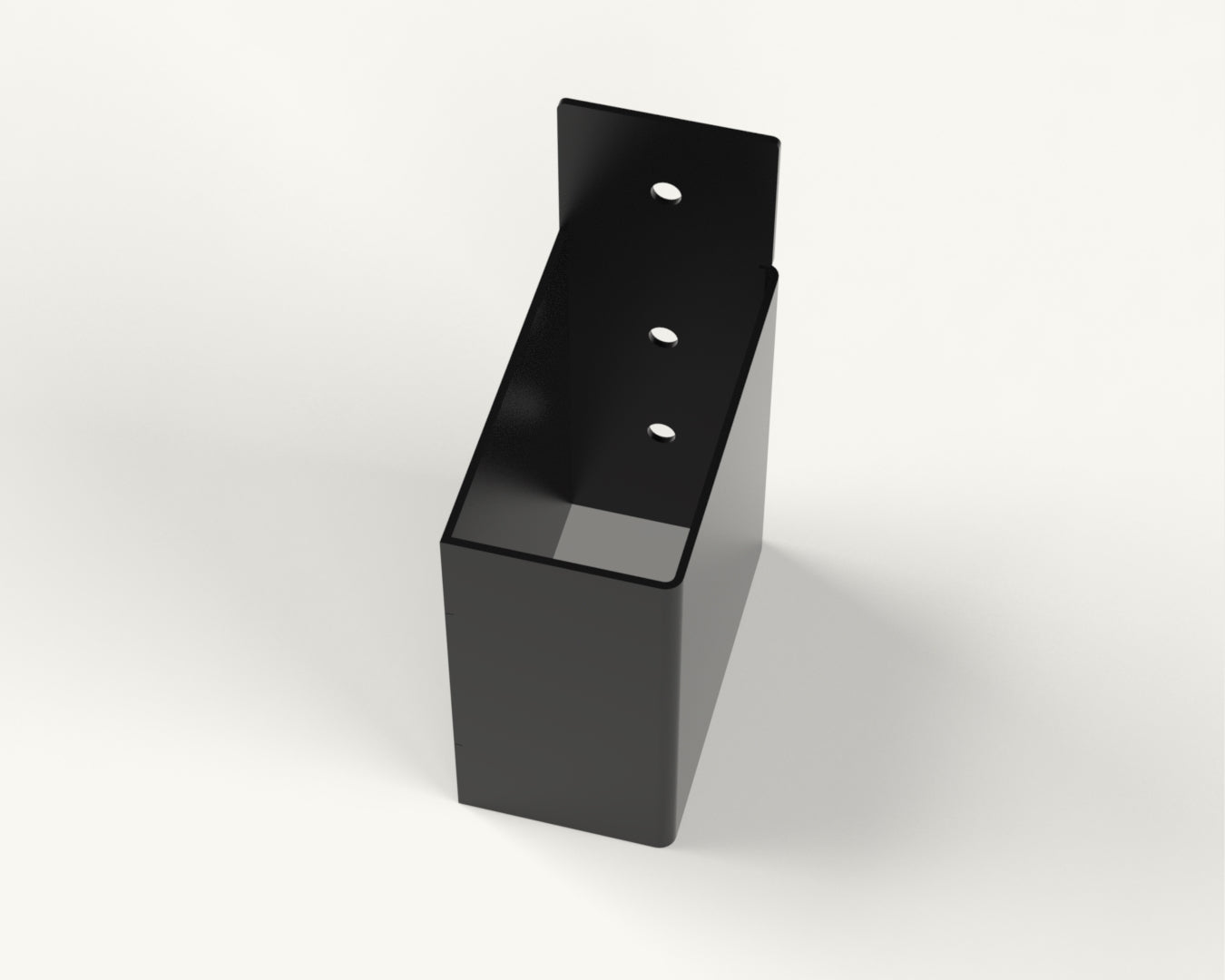

Top Rafter Bracket Precision Crafted for 90x45mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel
Fastening Hardware
24 x 12G 38mm Black Coated Pan Head Self Tapping screws to secure timber to bracket
Bracket Dimensions
Designed for 90 x 45 timber fit
Arm Opening (Interior): 92 x 47mm
Arm Opening (Exterior): 96 x 51mm
Steel Thickness: 2mm
Bracket dimensions (L x W x H): 140 x 51 x 97mm
Colour: Black (Powder Coated)
Three Fastening Holes: 7mm
Modaprax Tips & Instructions

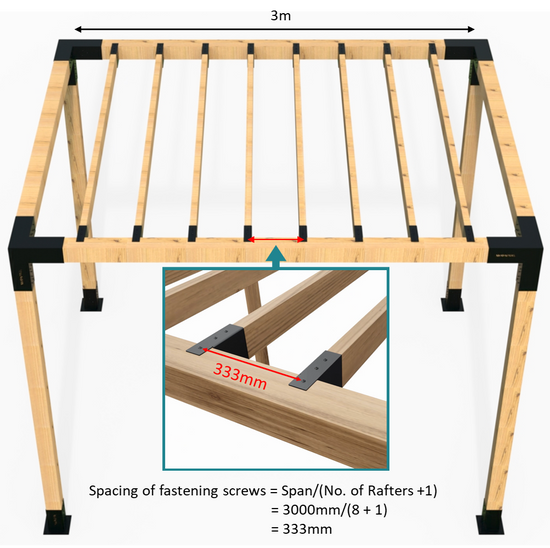

To estimate space between rafter brackets:
Step 1: Measure exact span of your timber frame.
Step 2: Count the number of spaces between rafters (no. of rafters +1).
Step 3: Estimate the space between each rafter fastening point = Span/(no. of rafters +1)
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
Modaprax Rafter Bracket (90x45)

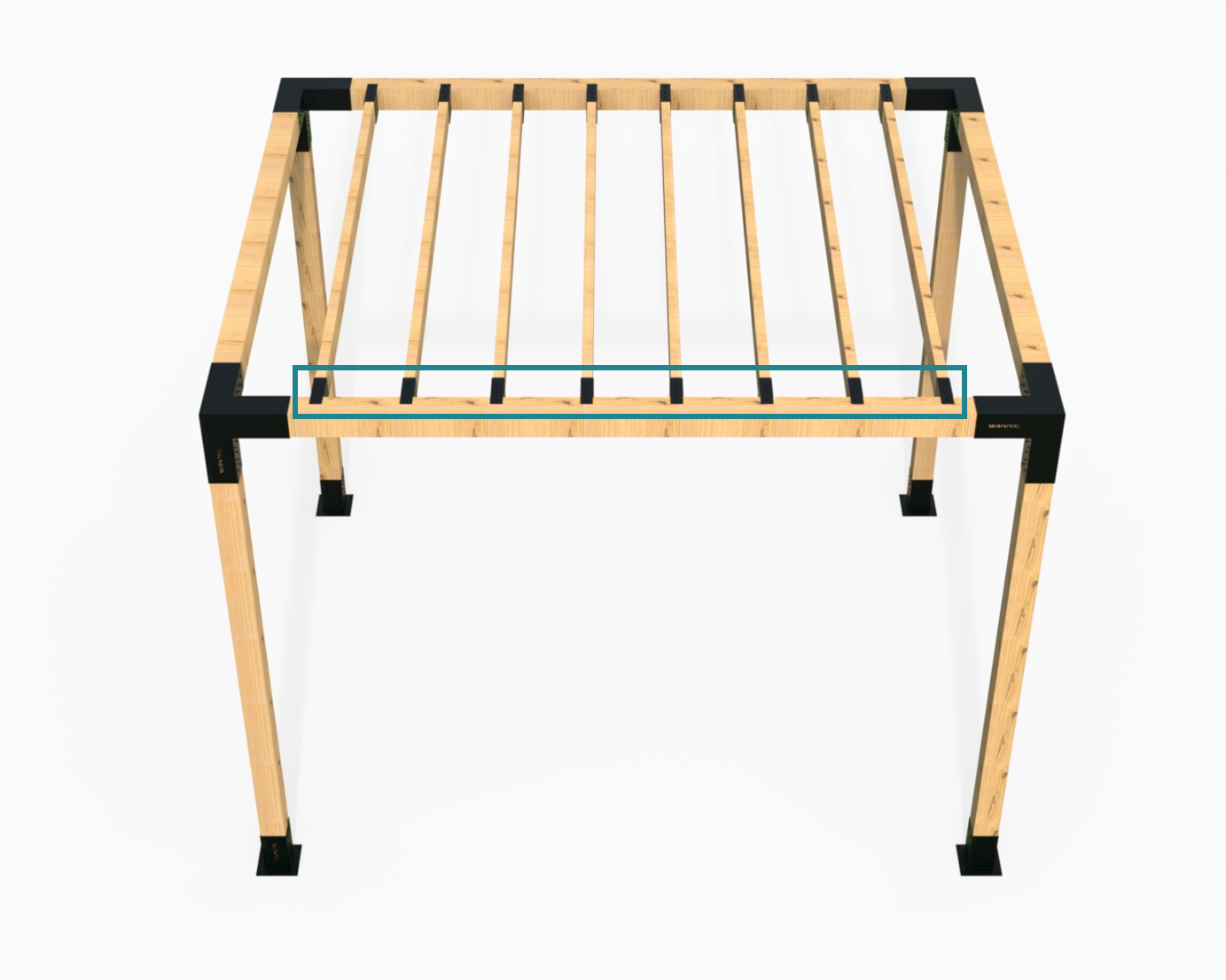

The Top Rafter Bracket provides an easy to assemble option to add pergola rafters to your outdoor structure.
Designed to fit 90x45mm timber beams and will go perfect with your 90x90 Modaprax Pergola Bracket.
