Five Arm Pergola Expansion Bracket for 90x90 Timber Posts

Five Arm Expansion Pergola Bracket Designed for 90x90mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

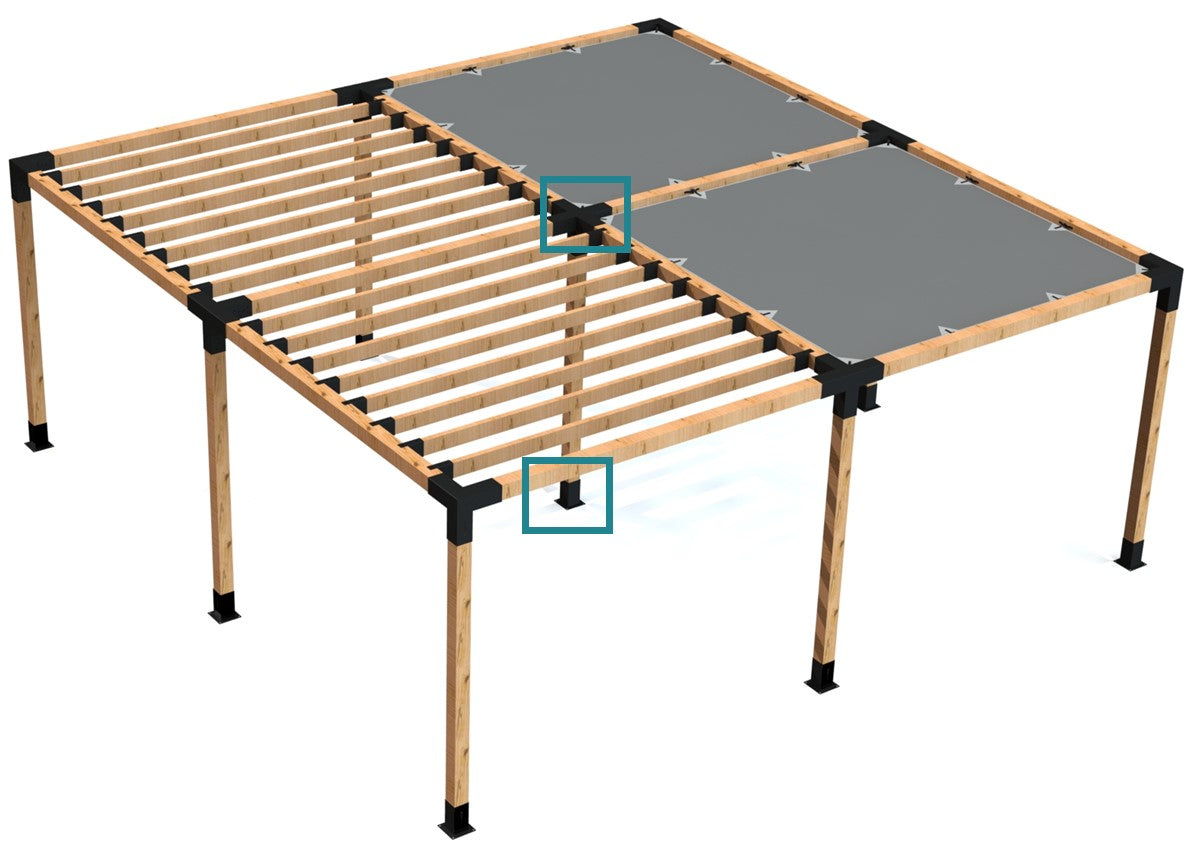

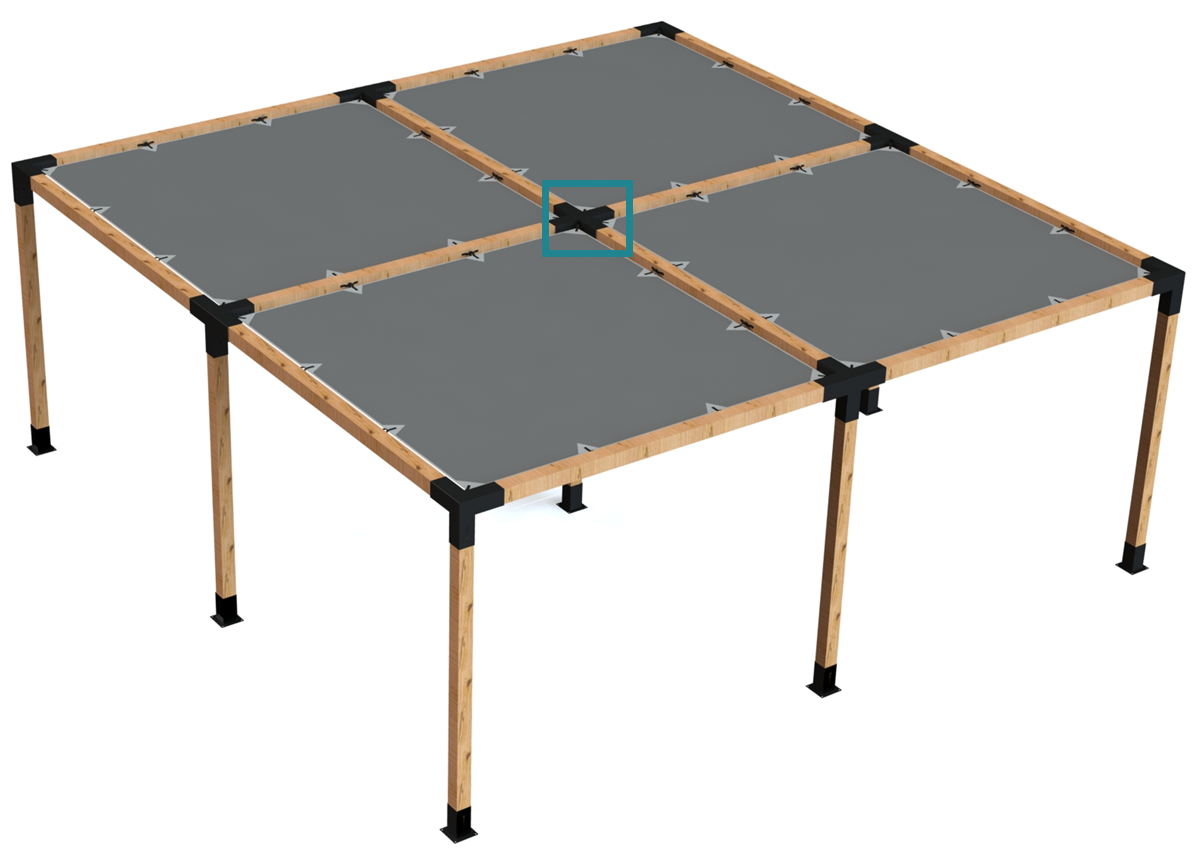

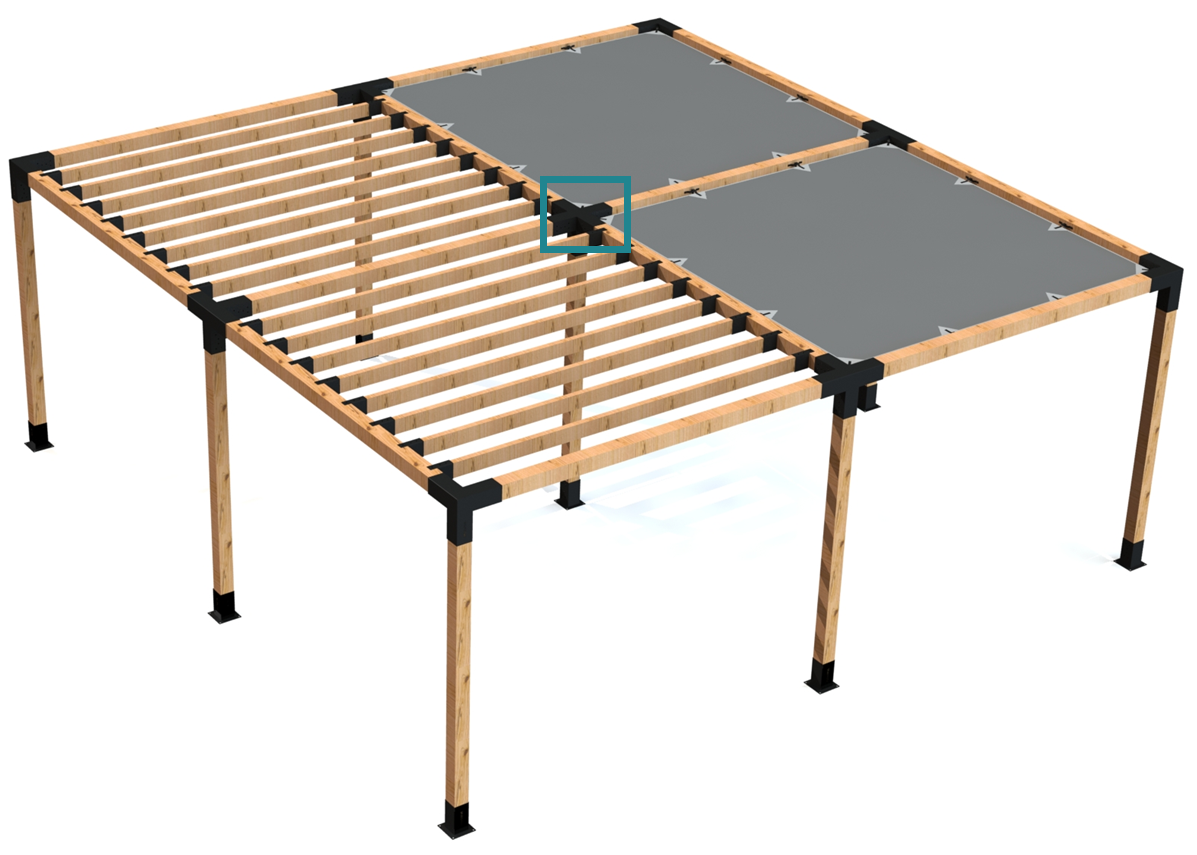

1 x FiveArm Expansion Bracket to expand the pergola to the width and length of your pergola.

1 x Base Bracket (optional)  to anchor the timber post holding up the FiveArm Expansion bracket securely to solid surface (e.g. concrete or decking etc.).

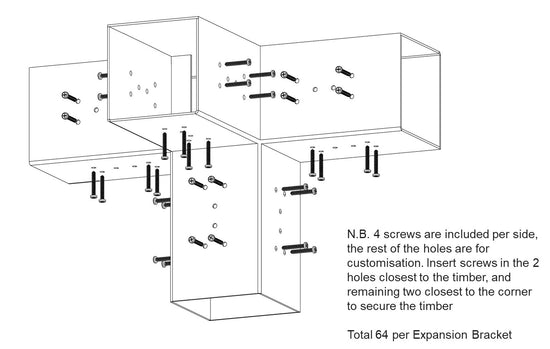

72 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets to timber.

Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

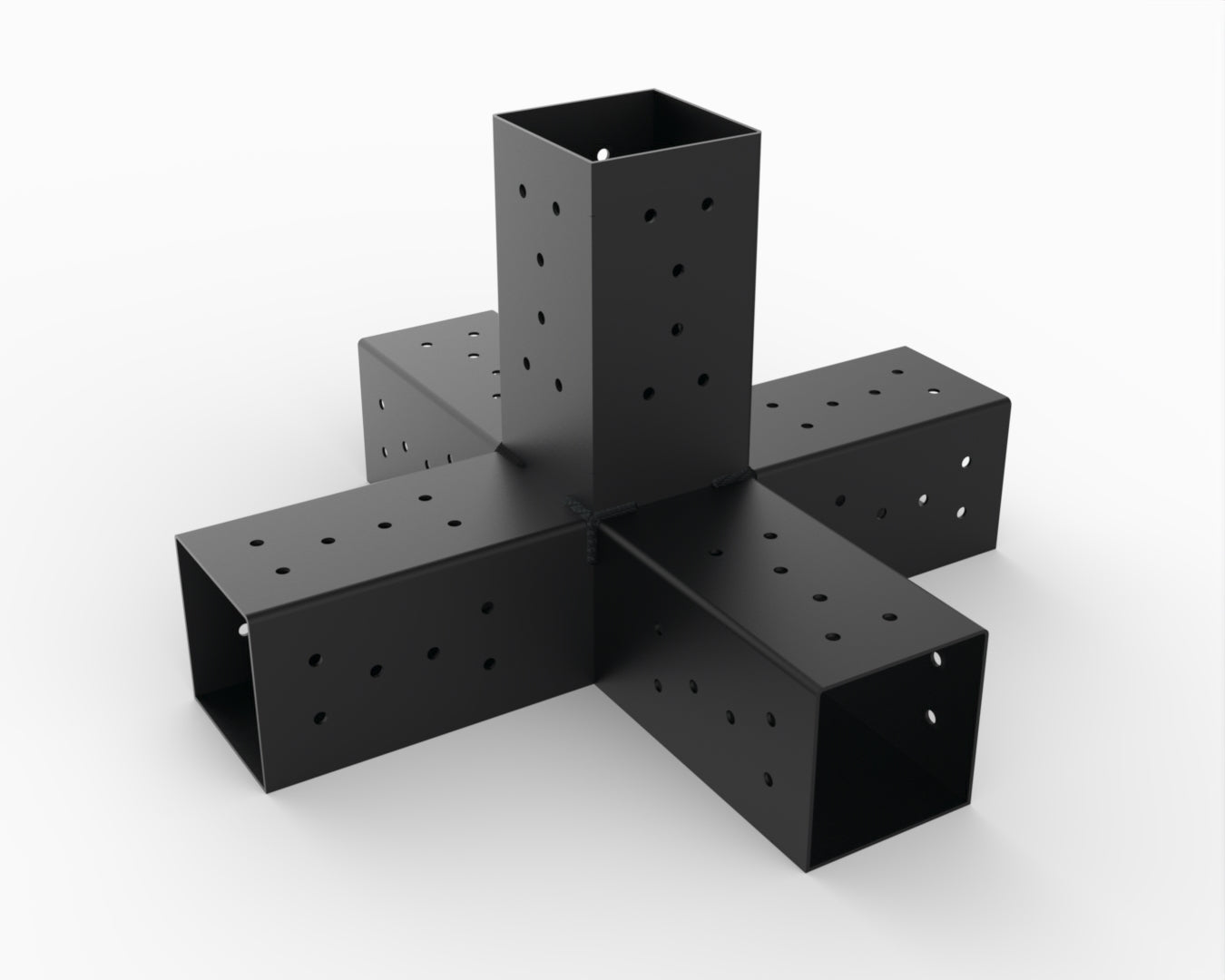

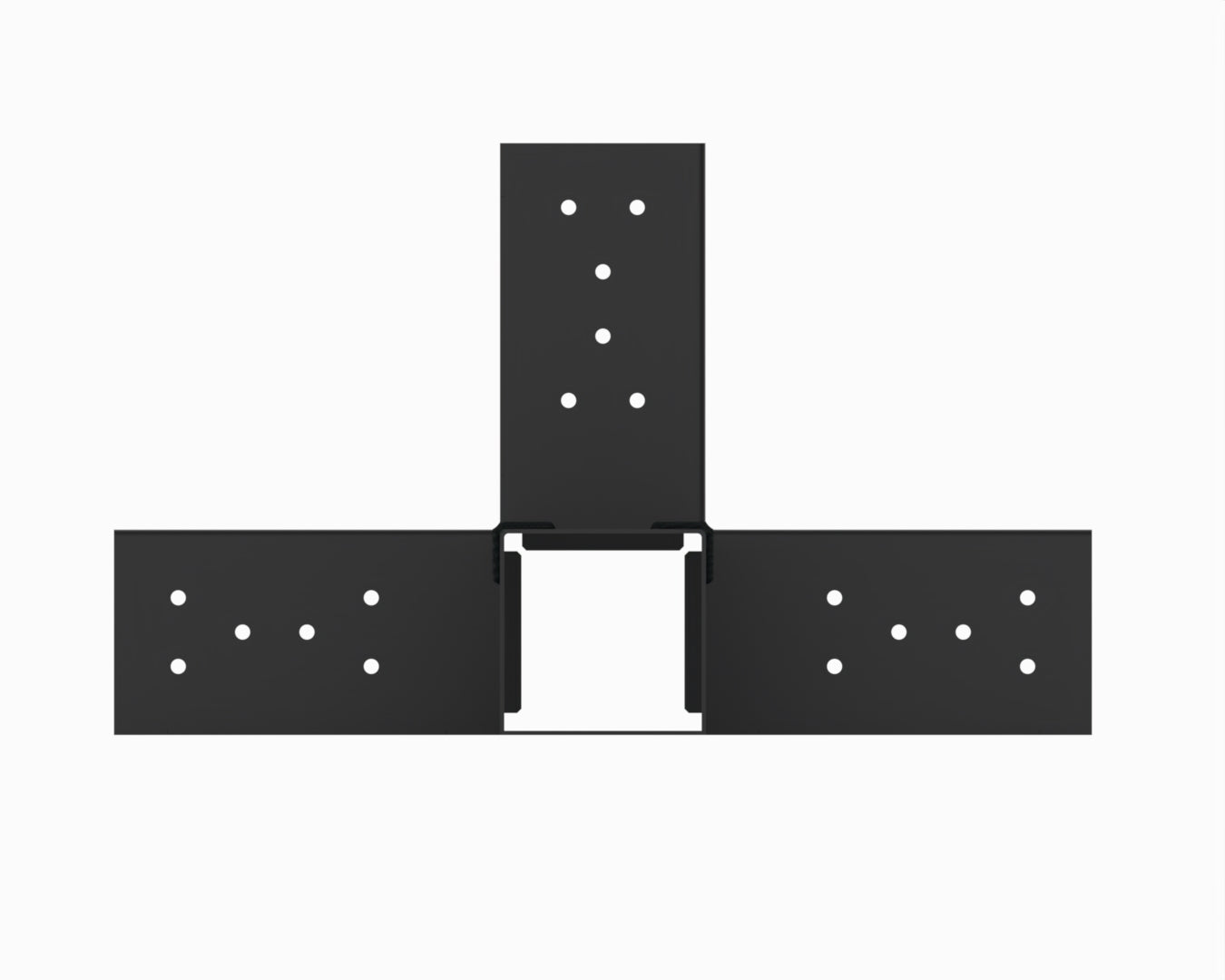

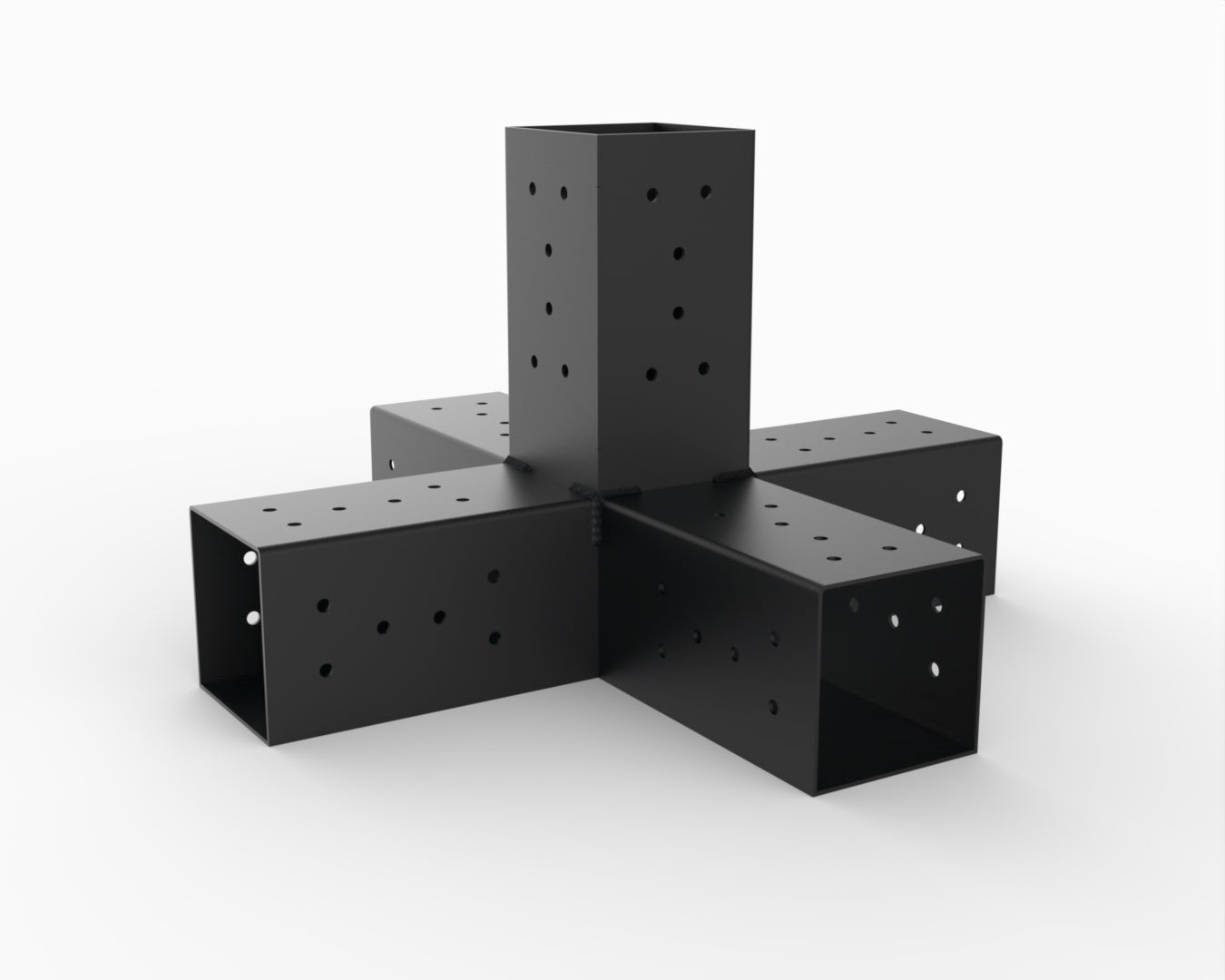

5 Arm Expansion Bracket:
Arm Opening (Interior): 92 x 92 mm
Arm Opening (Exterior): 96 x 96 mm
Arm Length: 180 mm
Steel Thickness: 2mm
Bracket Dimensions (L x W x H): 456 x 456 x 276mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm

Base Bracket Features:
Arm Opening (Interior): 92 x 92 mm
Arm Opening (Exterior): 96 x 96 mm
Arm length: 180 mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm

We will behappy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
