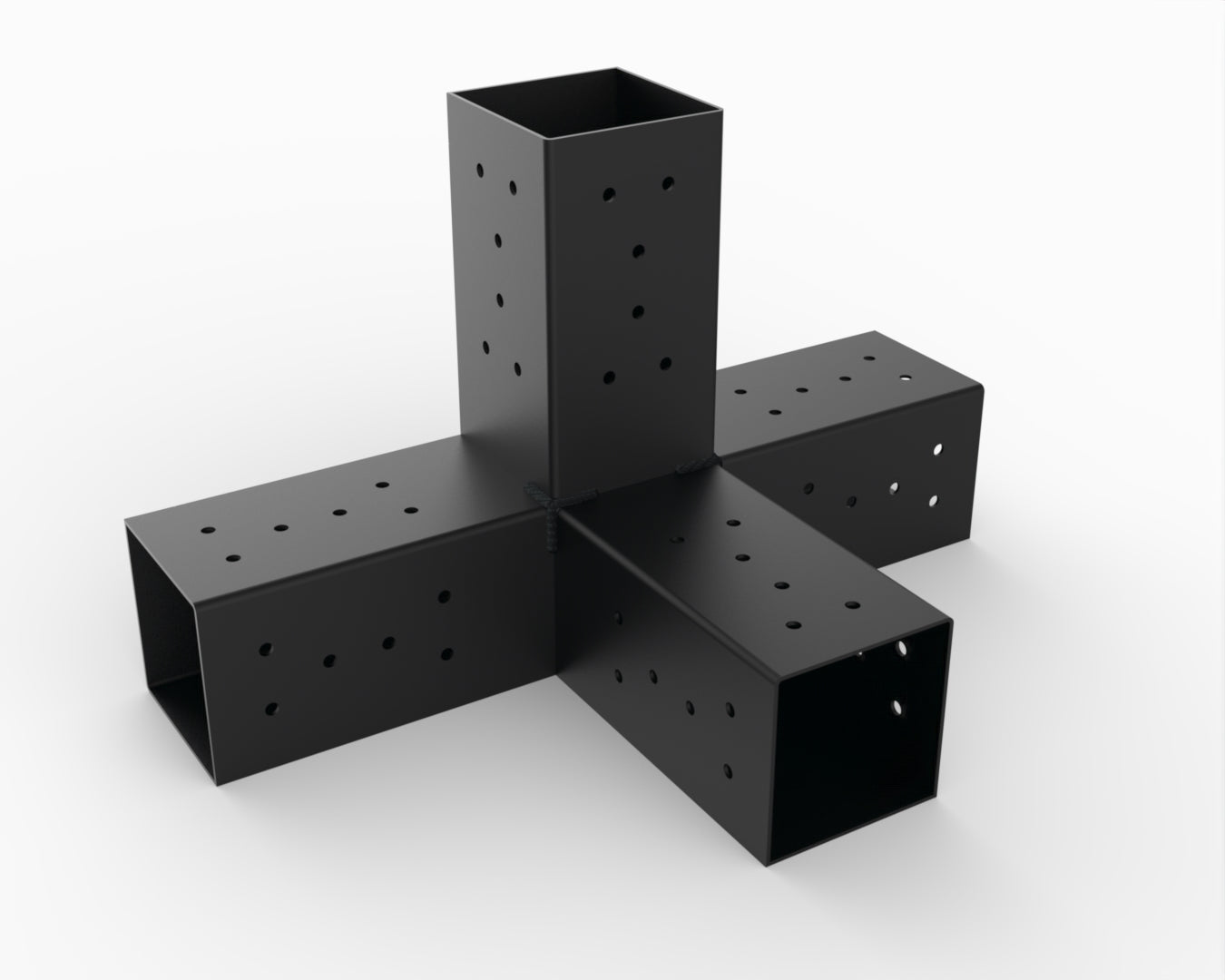

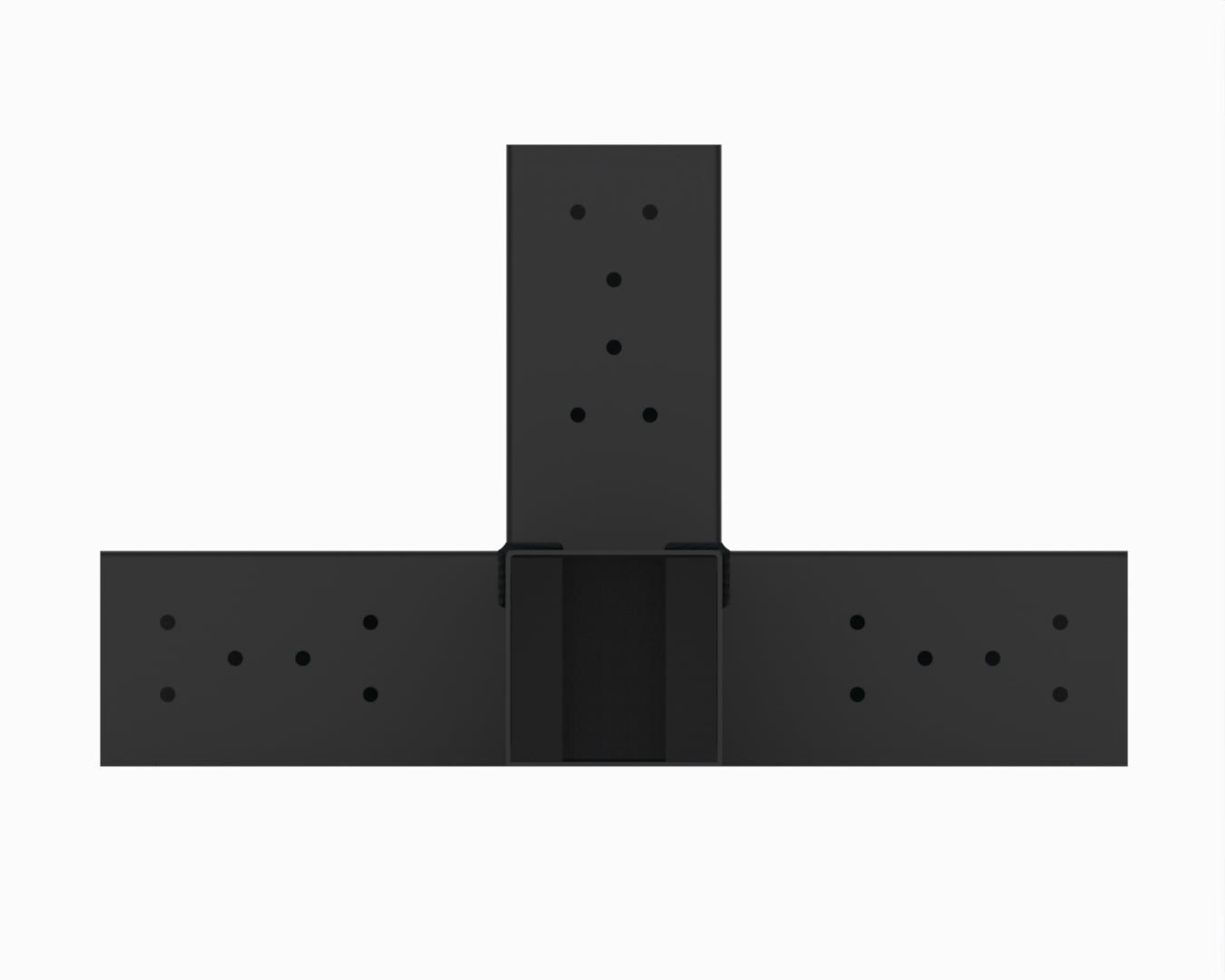

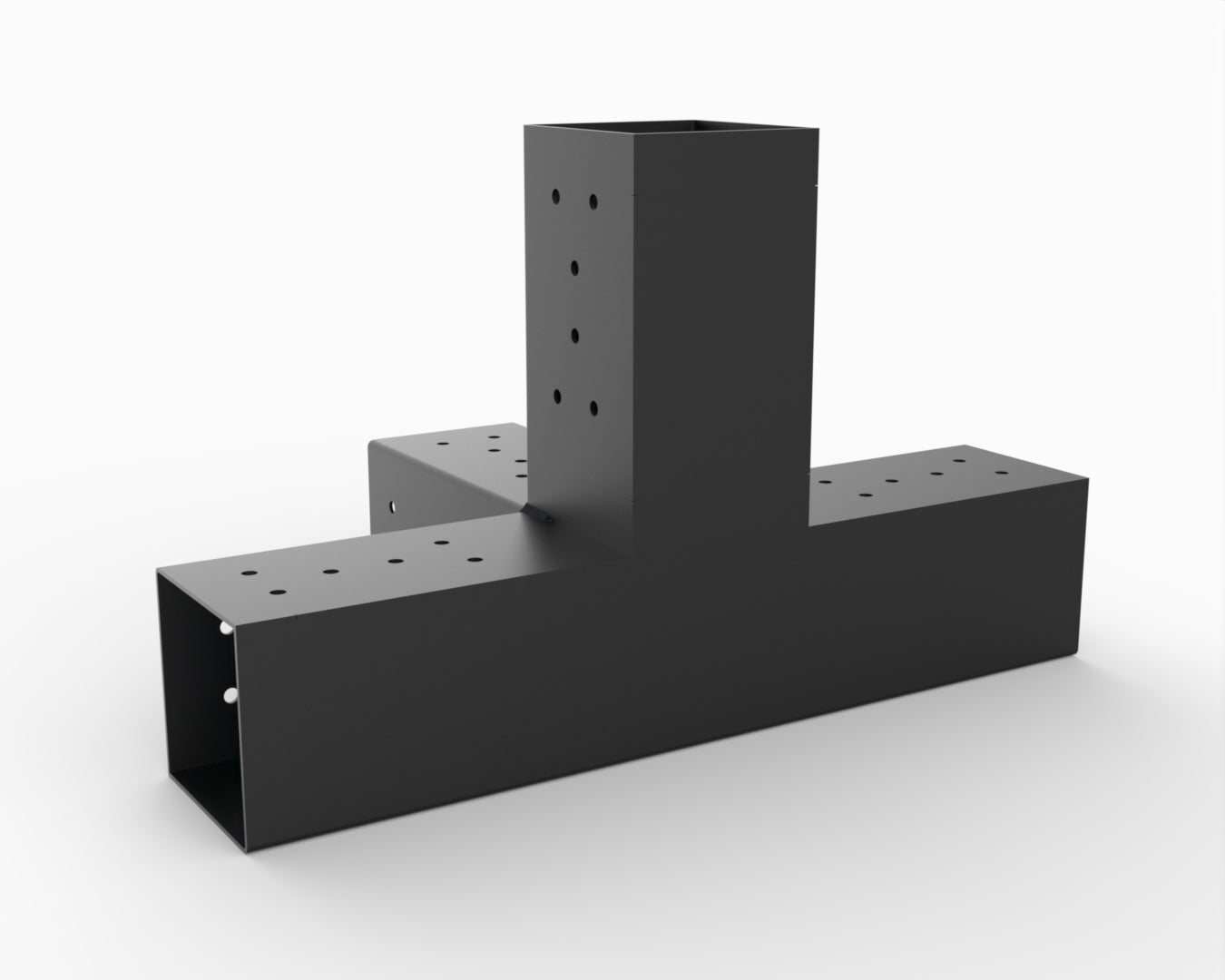

Four Arm Extension Pergola Bracket for 90x90 Timber Posts

Regular price $169.00 AUD
Regular price Sale price $169.00 AUD
Sale Sold out
Tax included.
Bracket Packs

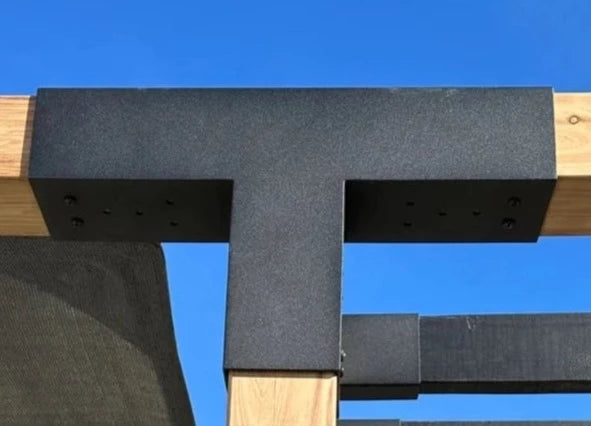

The Four Arm Extension Pergola Bracket is designed to effortlessly extend the frame of your pergola to suit your space.

Strong & Durable, Premium Finish, Versatile and Easy to Assemble for instant outdoor elegance.

Can be purchased in bundles or separately:

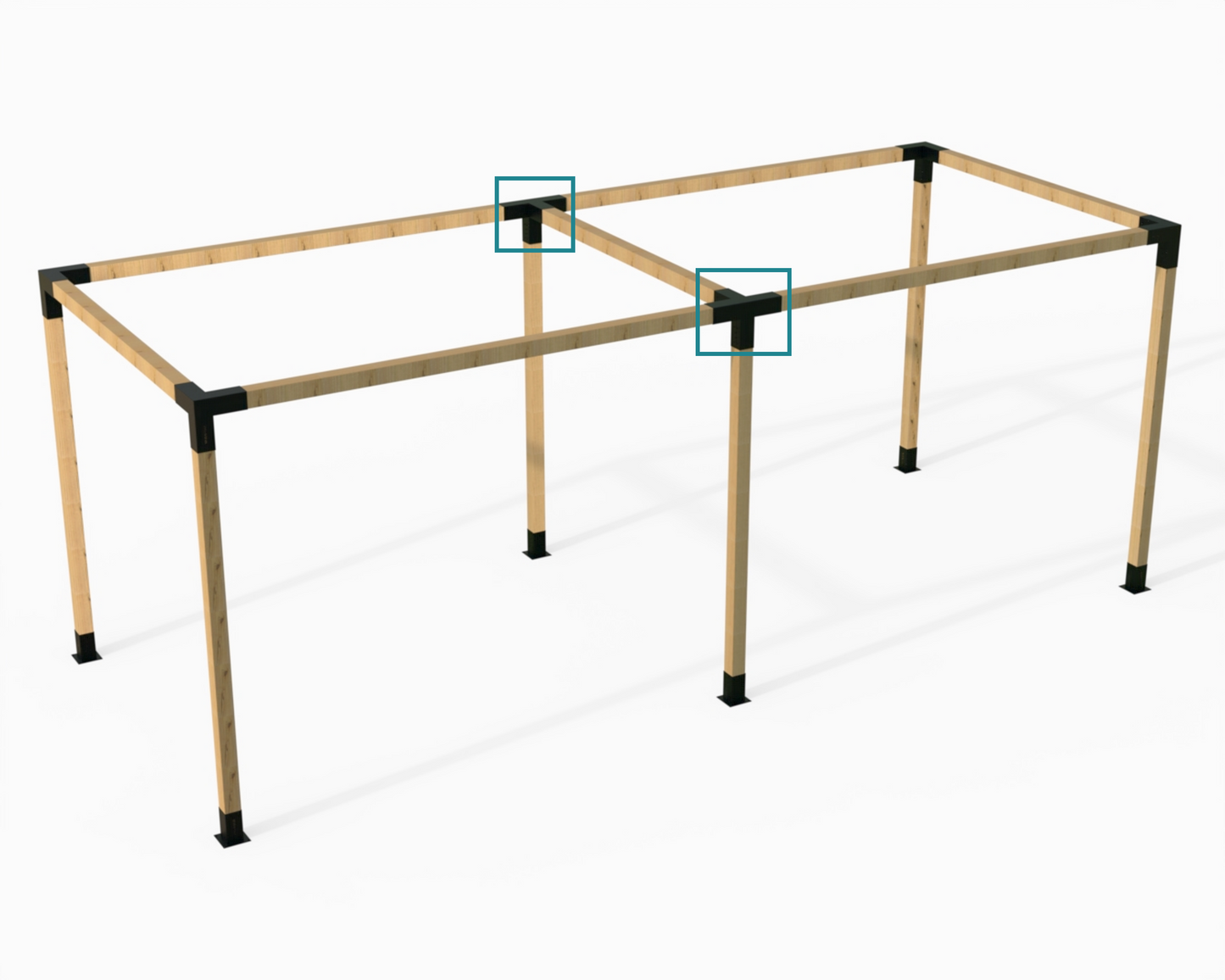

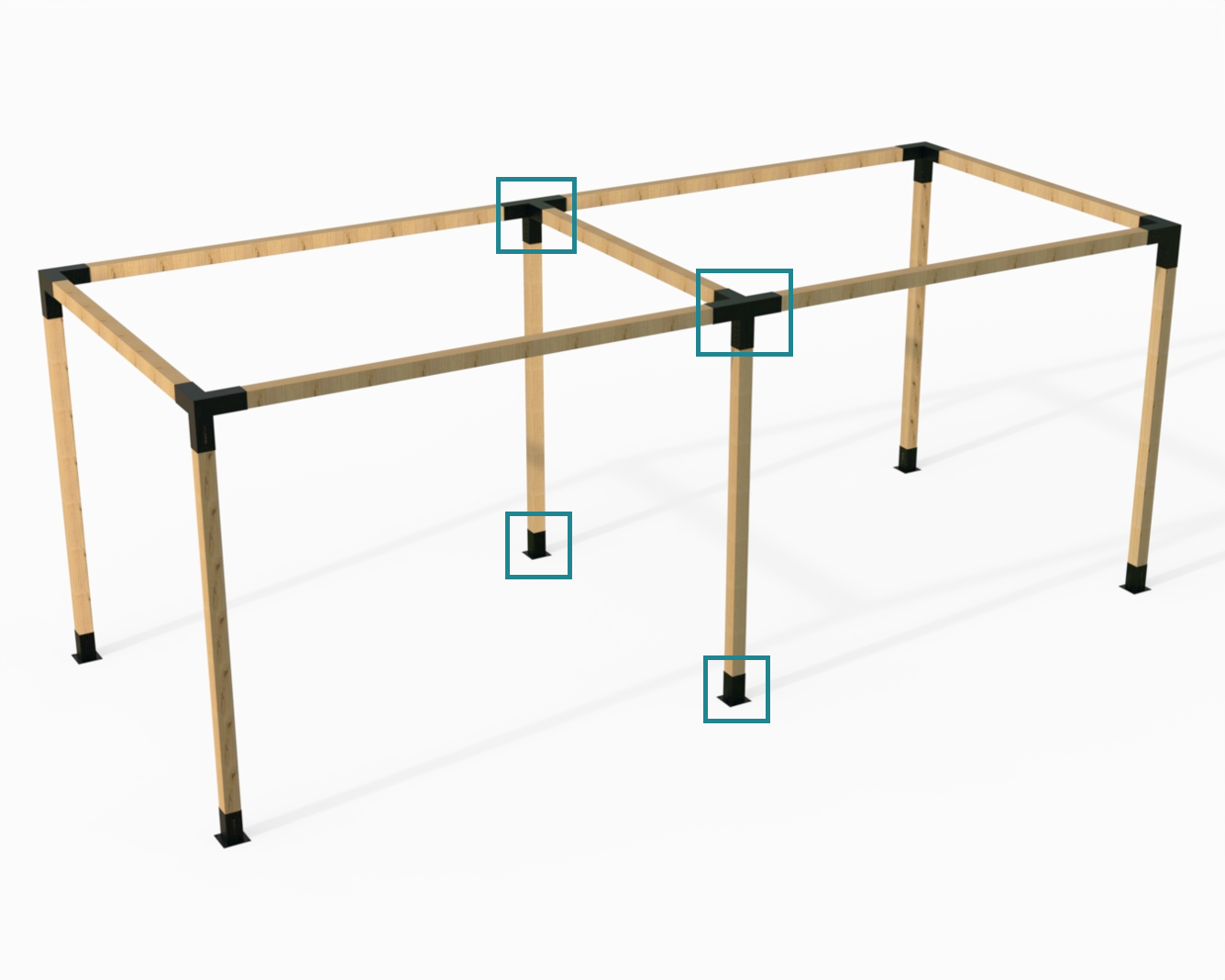

Extension Bracket marked on Pergola_Modaprax

  • FREE SHIPPING to anywhere in Australia
  • IN STOCK, 2 business days for Dispatch



Product Details

Features & Inclusions

Key Features
Precision Crafted: Designed for 90x90mm Timber (No Shaving)
Versality: Extends your frame to perfectly fit your outdoor space.
Simplicity: Easy Assembly & Customisation
Premium Quality: Engineer Certified to Create a Sturdy & Durable Frame

Four Arm Extension Bracket Designed for 90x90mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

Fastening Hardware
40/80 x 12G 38mm Black Coated Pan Head Self Tapping screws to secure timber to bracket

Product Specs

Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

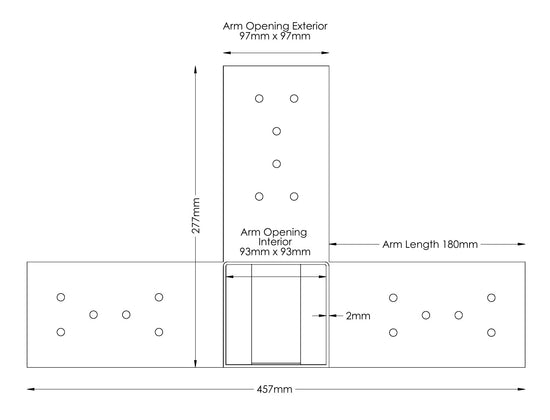

Four Arm Bracket Measurements:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm Length: 180 mm
Steel Thickness: 2mm
Bracket Dimensions (L x W x H): 456 x 276 x 276mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm

files/Modaprax90x90FourWayExtensionBracketDimensions.jpg

Modaprax Tips

For instructions on how to install  your Pergola, please access the Modaprax Instructions Guide here.

files/Modaprax_Four_Arm_Extension_Bracket_for_90x90_Posts_Screw_Tips_5732a832-5cf0-4627-9185-0f97080d00e5.png

Returns

We will behappy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

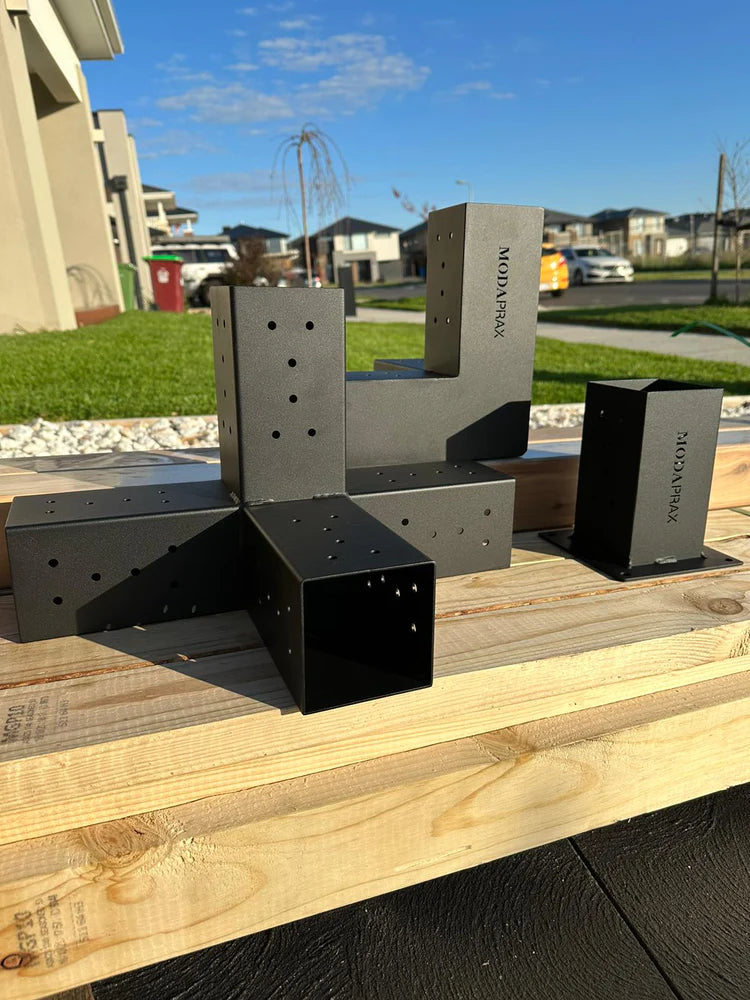

Modaprax 90x90 Pergola Brackets

Modaprax Four Arm Extension Bracket (2 pack)

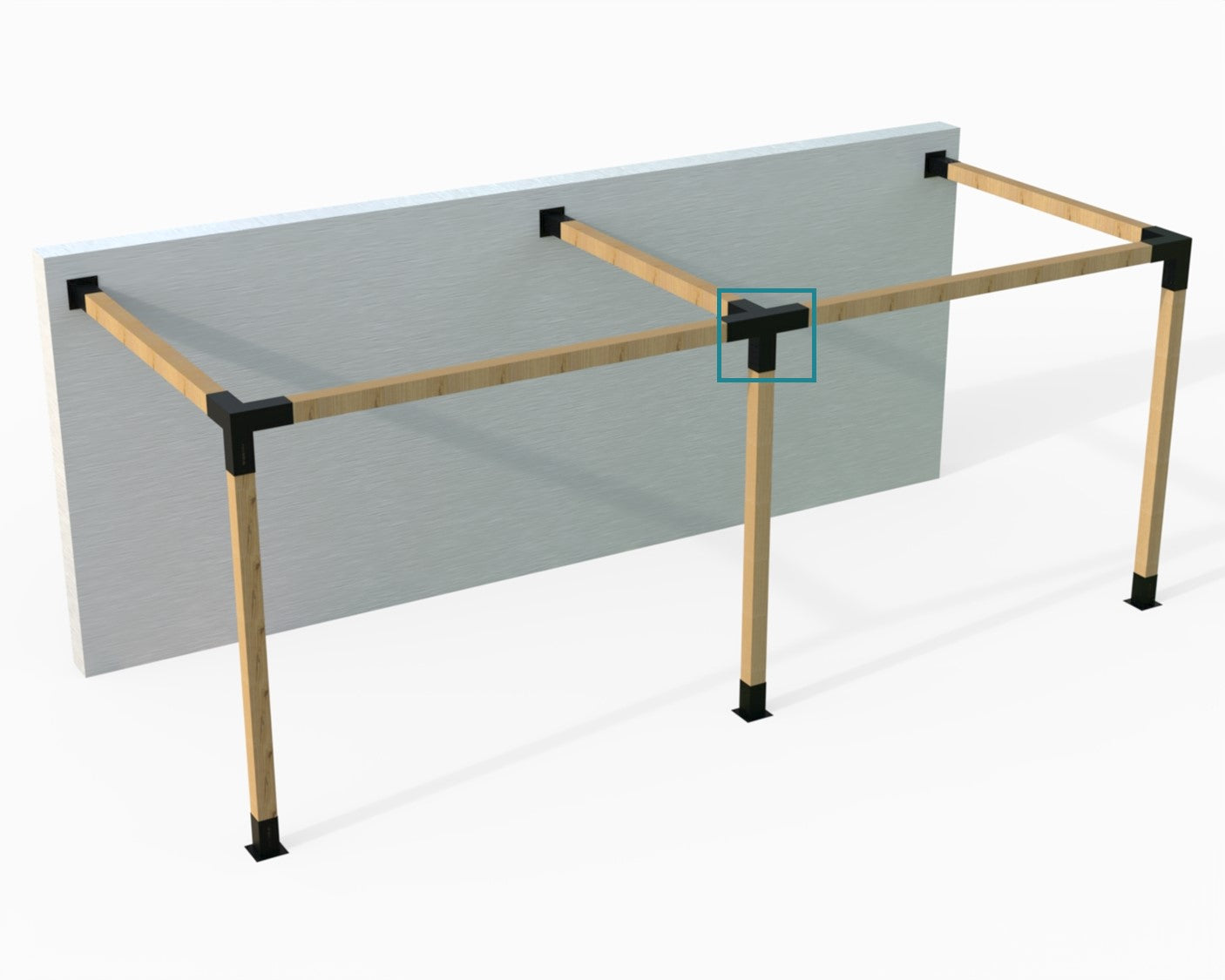

The Modaprax Four Arm Extension Bracket extends the frame of your Pergola to the length that best fits your outdoor space.

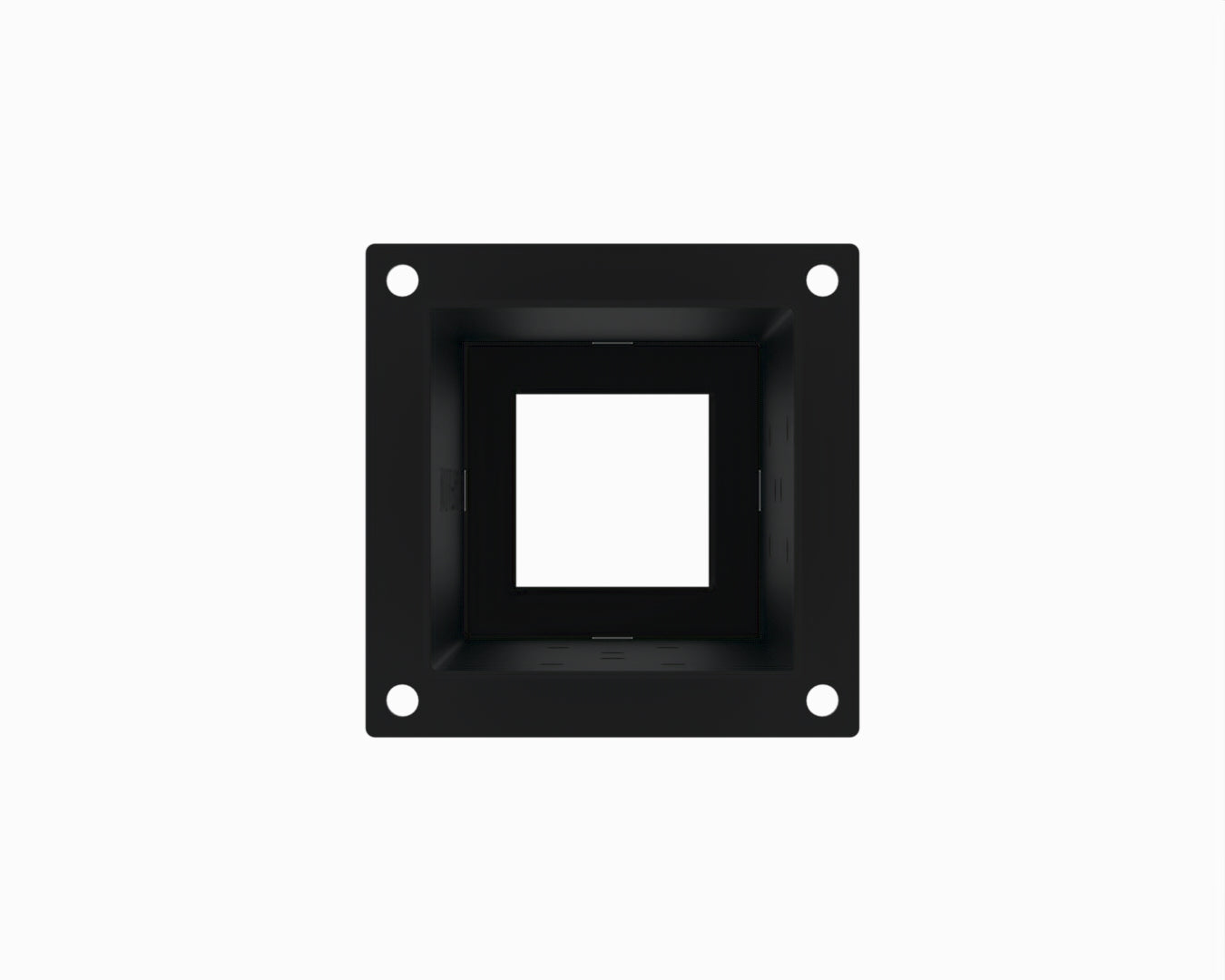

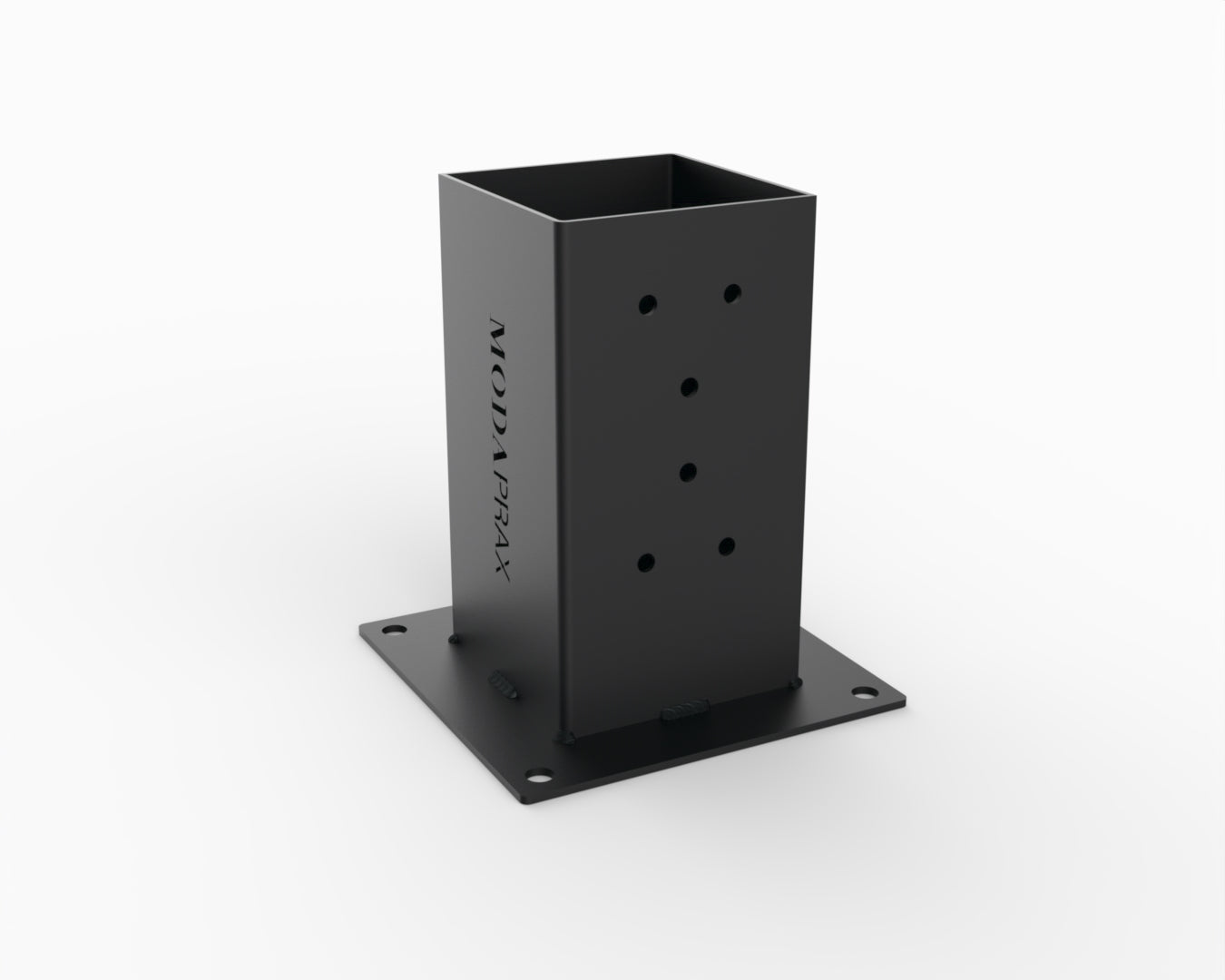

The 2-pack comes with two base brackets to anchor the posts to the solid surface base of your space.
