Three Arm Corner Pergola Bracket for 90x90 Timber Posts
Couldn't load pickup availability
The Three Arm Corner Pergola Bracket for 90x90mm Timber effortlessly connects posts for a solid core frame.
Strong & Durable, Premium Quality Finish, Versatile and easy to set up for instant outdoor elegance.
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 business days for Dispatch
Product Details
Features & Inclusions
Key Features
Precision: Designed for 90x90mm Timber (No Shaving)
Versality: Adapts to your unique vision for outdoor elegance.
Simplicity: Easy Assembly & Customisation
Strong & Durable: Engineer Certified to Create a Sturdy Frame
Corner Brackets Designed for 90x90mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel
Fastening Hardware
48 x 12G 38mm Black Coated Pan Head Self Tapping screws to secure timber to bracket
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

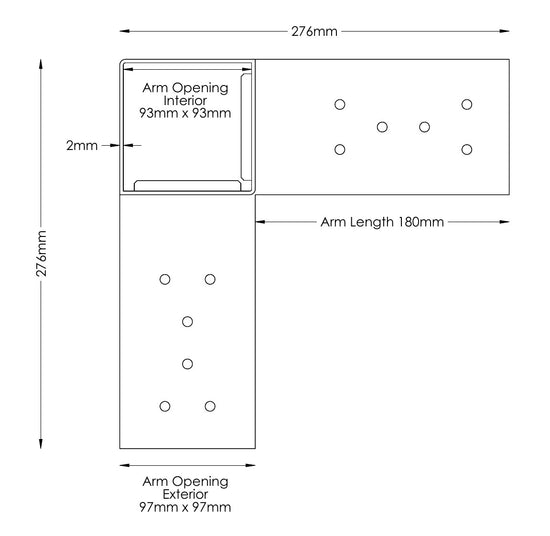

Bracket Dimensions:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm Length: 180 mm
Steel Thickness: 2mm
Bracket Dimensions (L x W x H): 276 x 276 x 276mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Modaprax Tips
For instructions on how to install these Corner brackets for your Pergola, please access the Modaprax Instructions Guide here.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

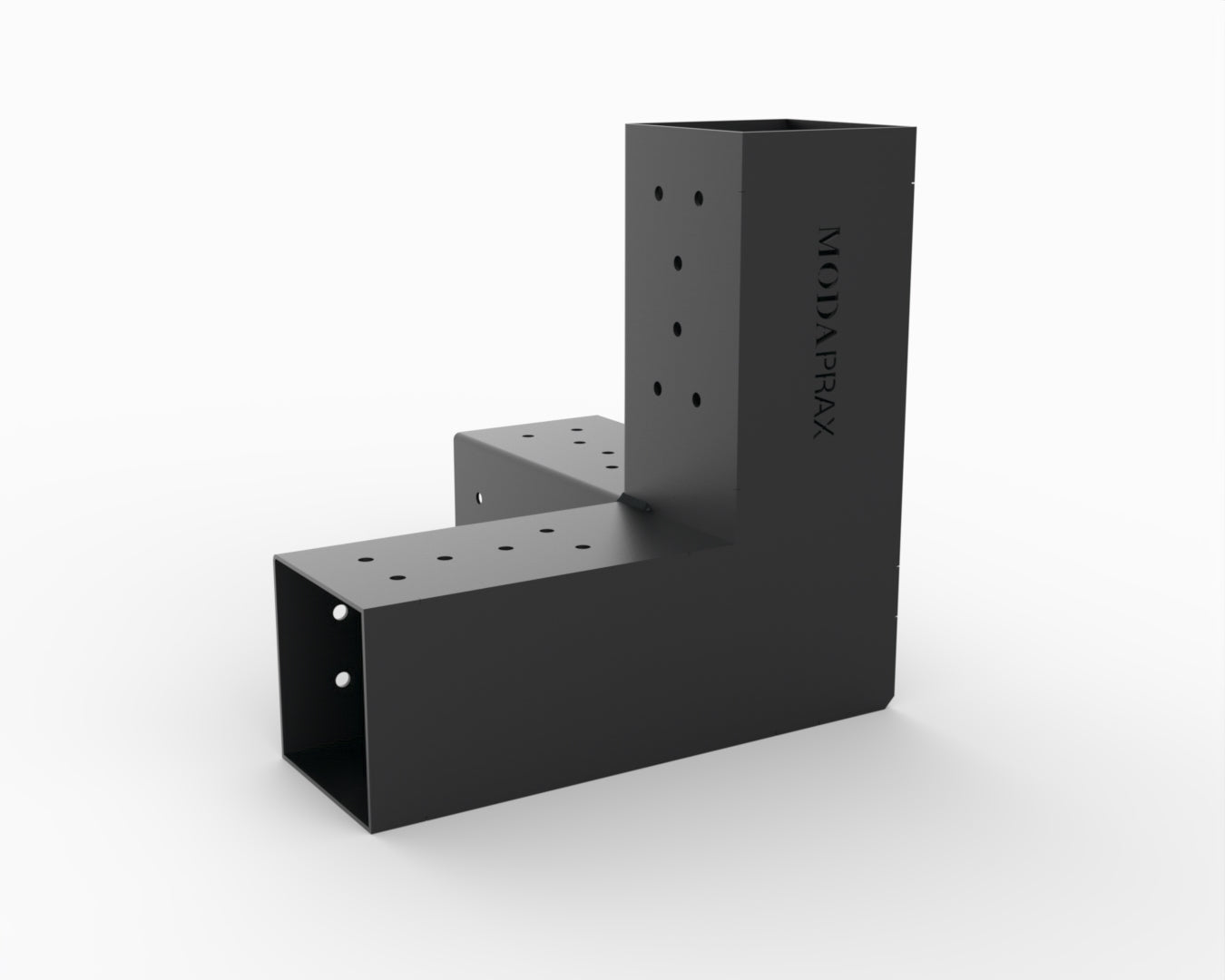

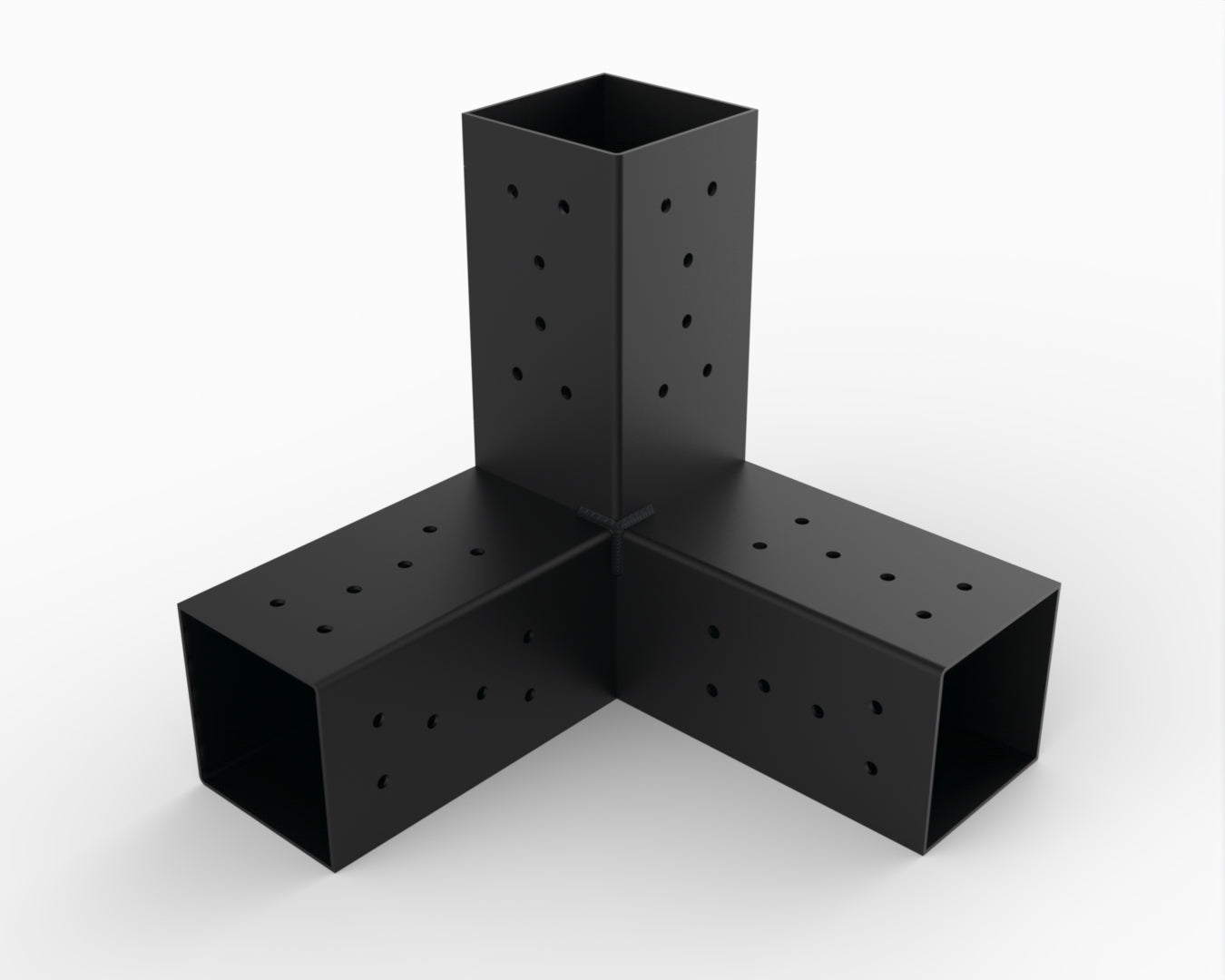

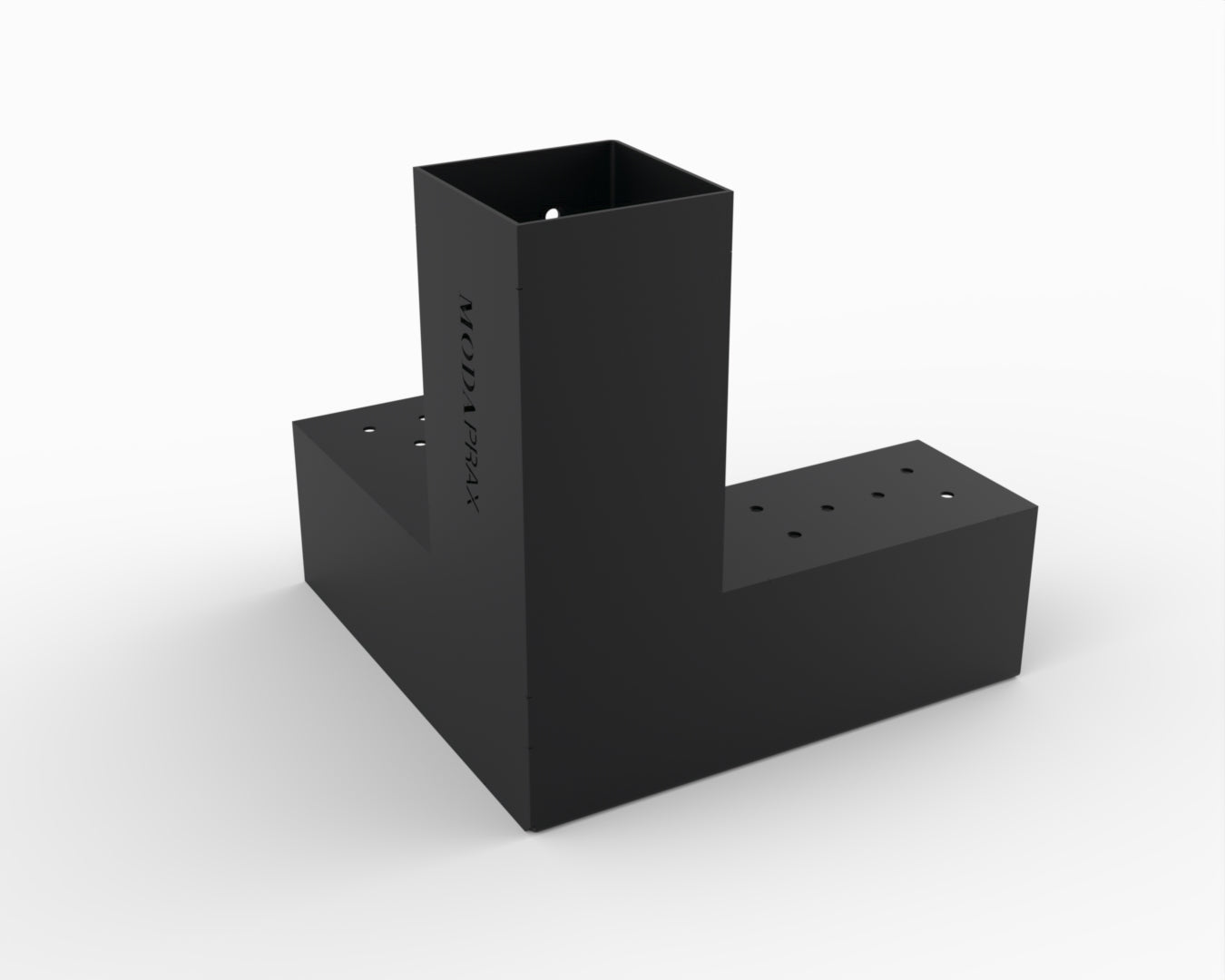

Modaprax Corner Bracket

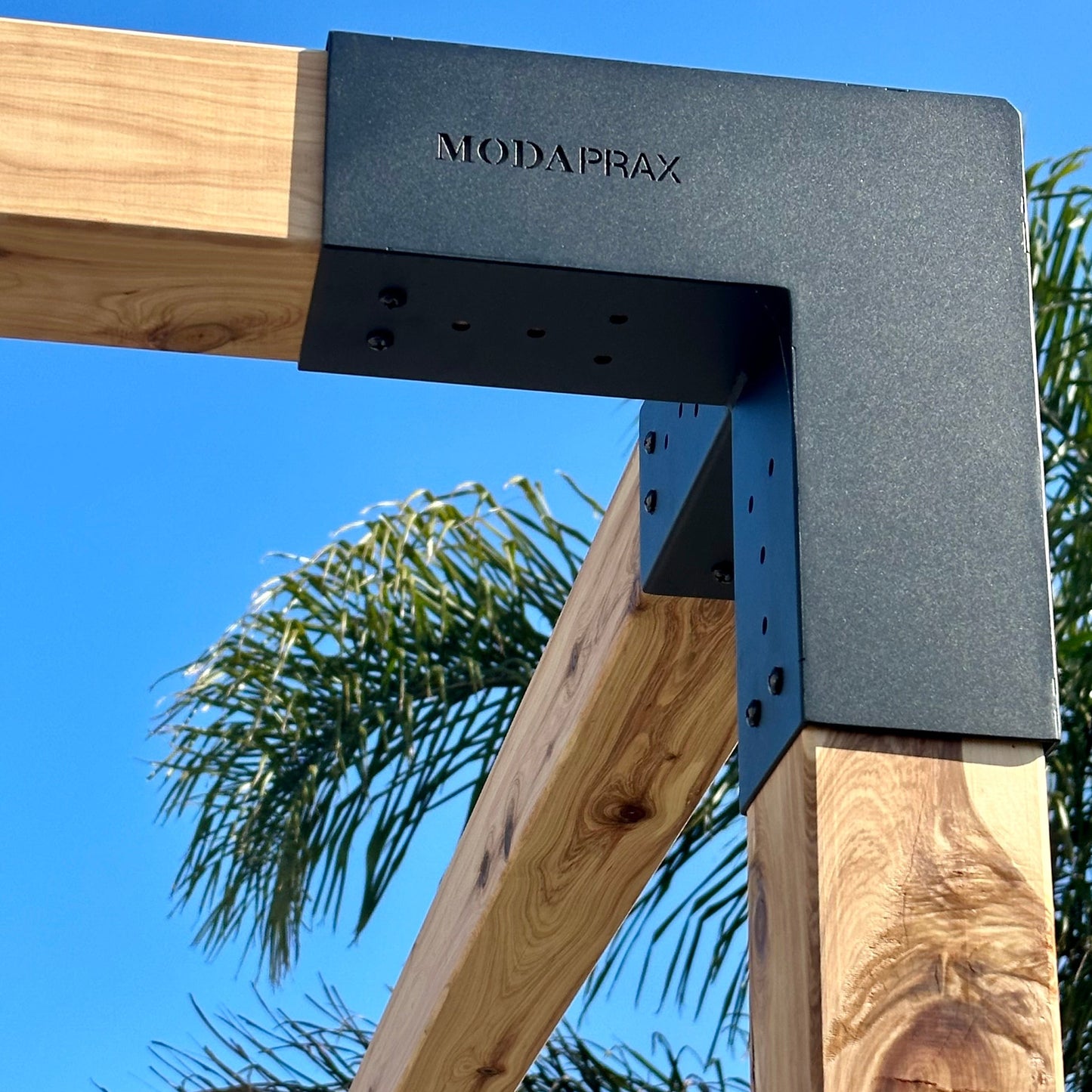

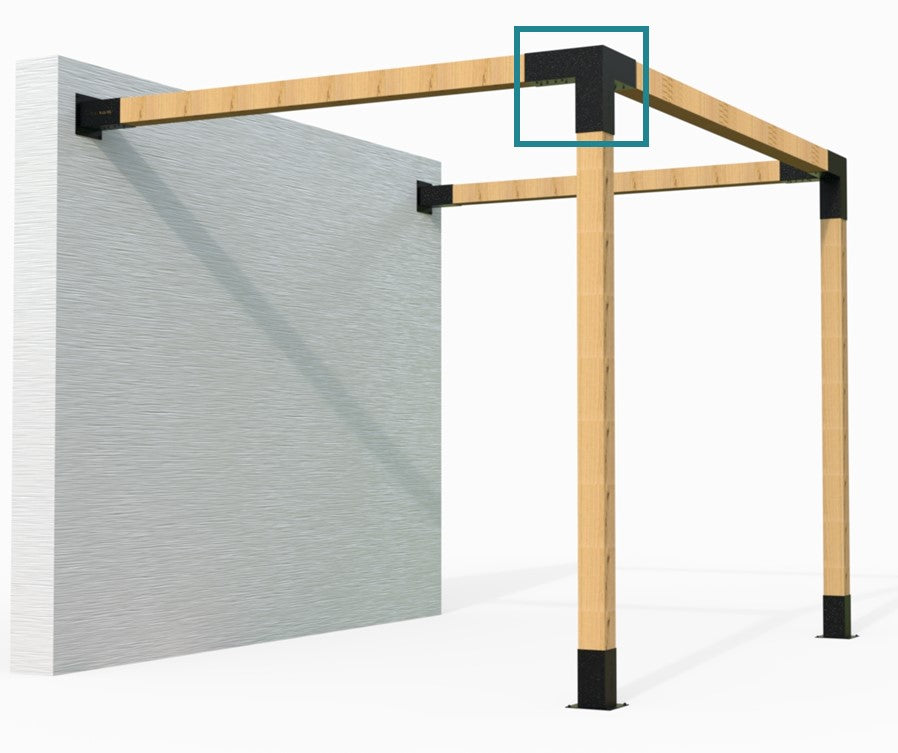

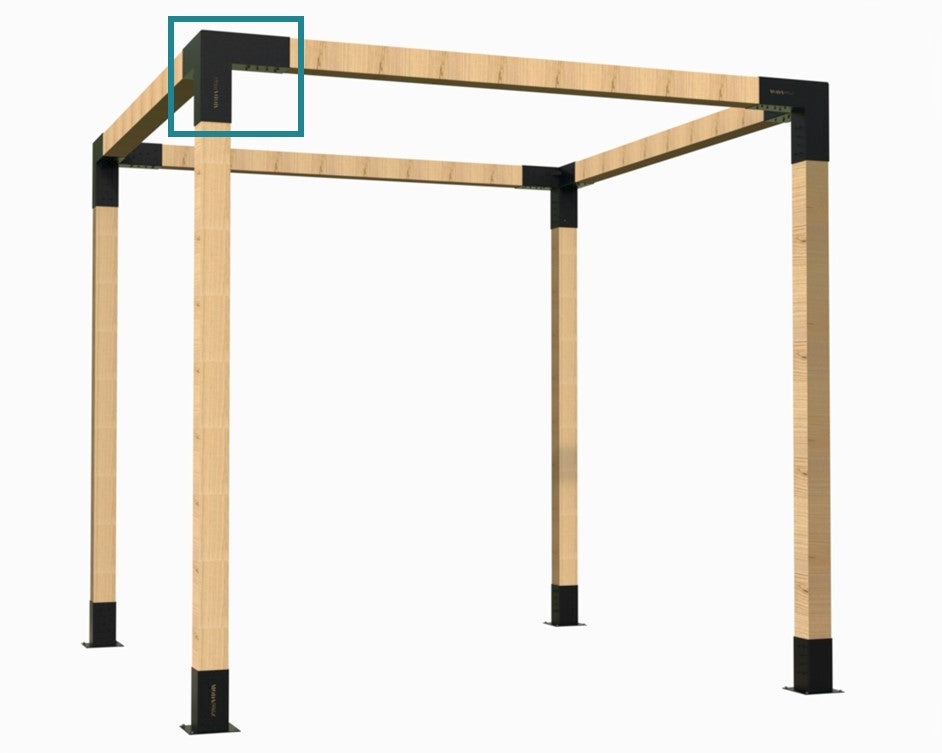

The Modaprax three arm corner brackets connects the posts of your pergola or gazebo to create the core frame needed to set up your outdoor structure.
