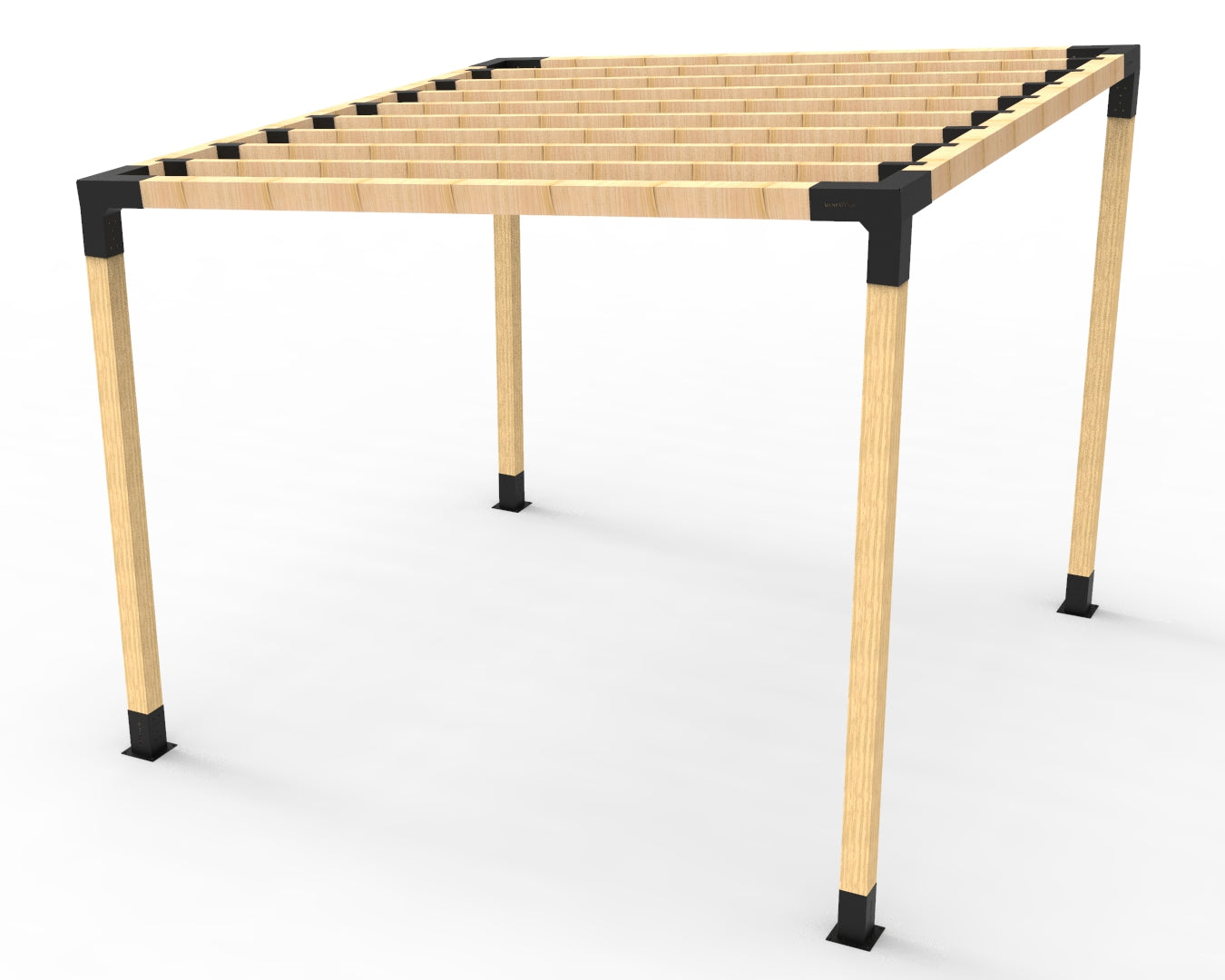

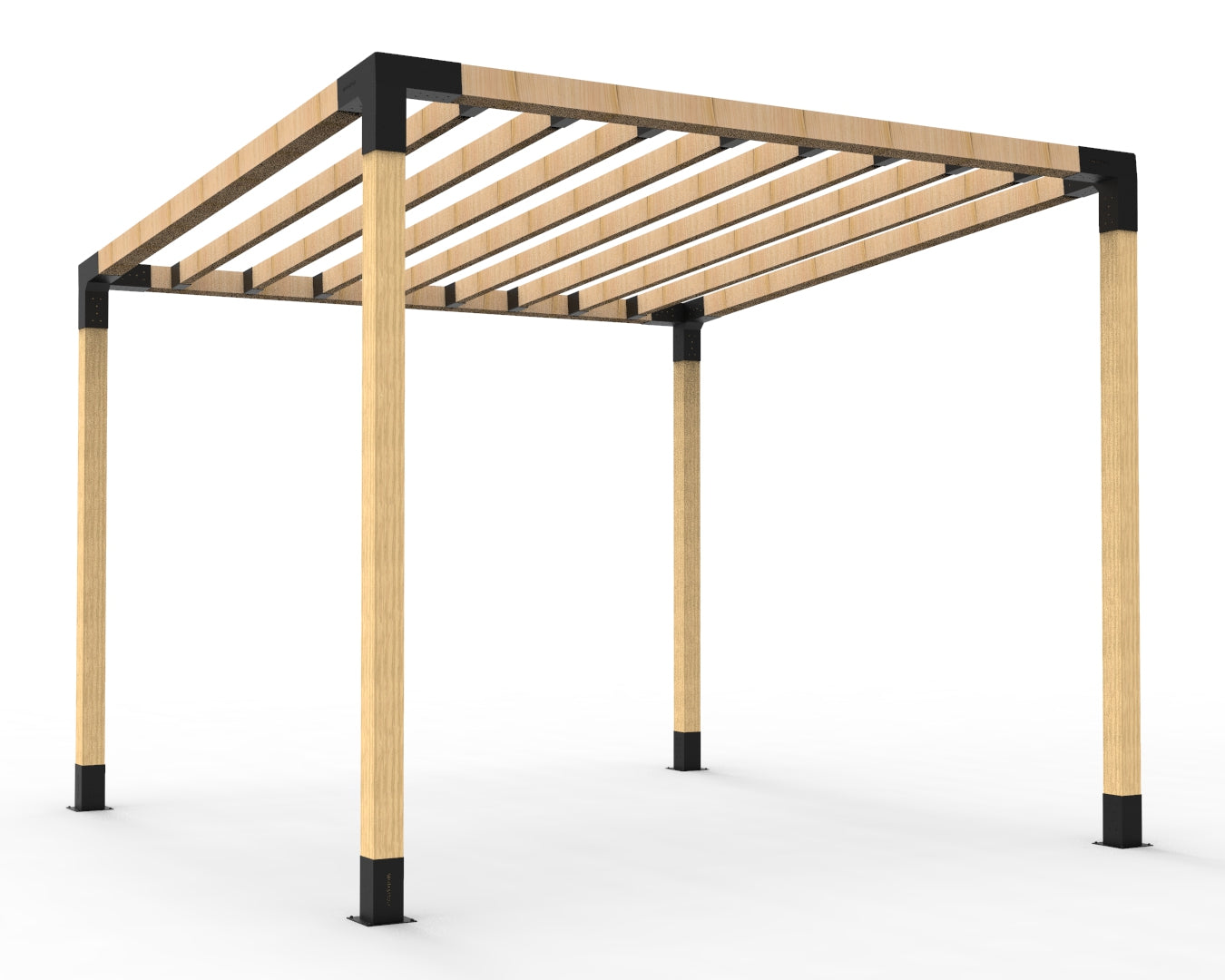

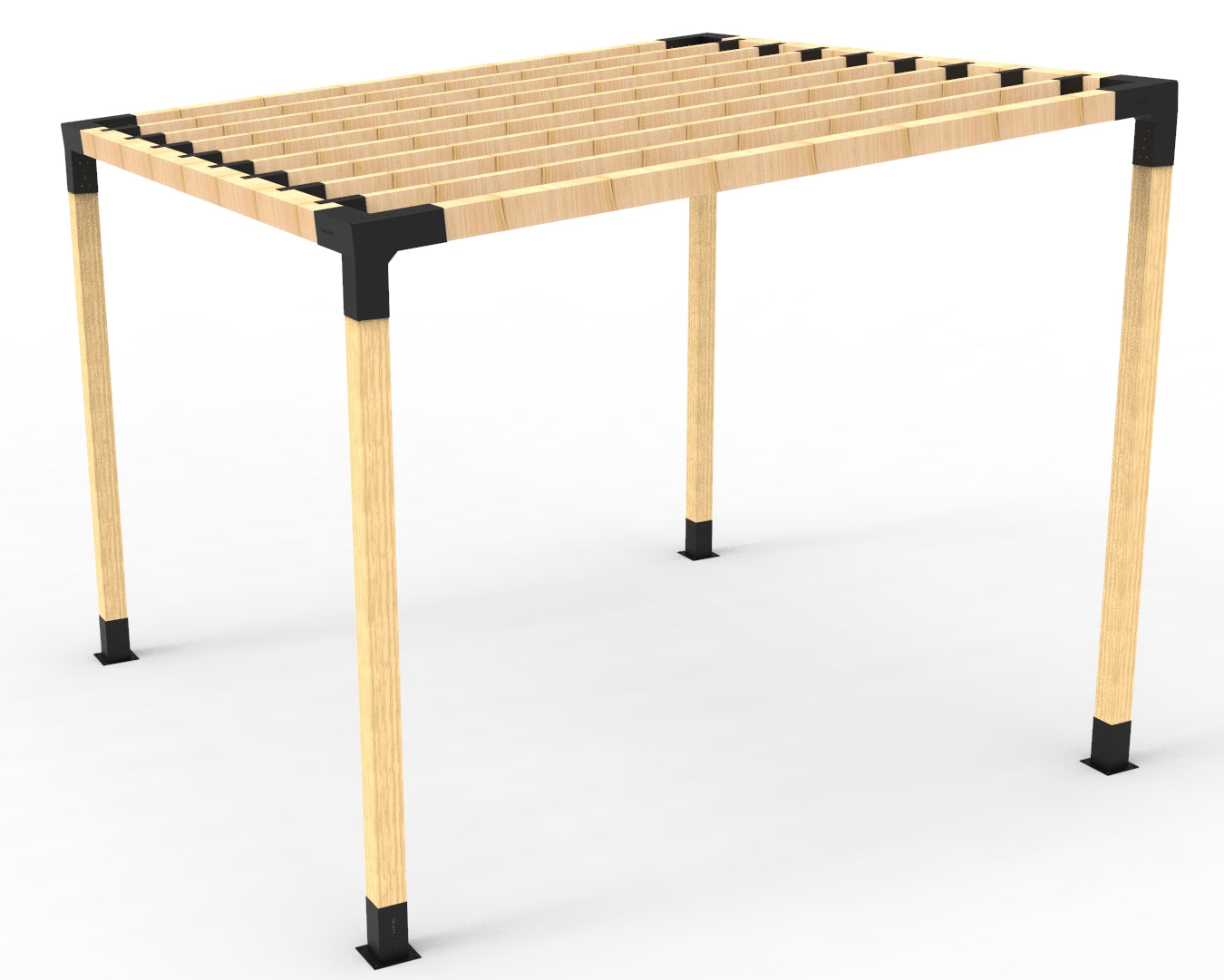

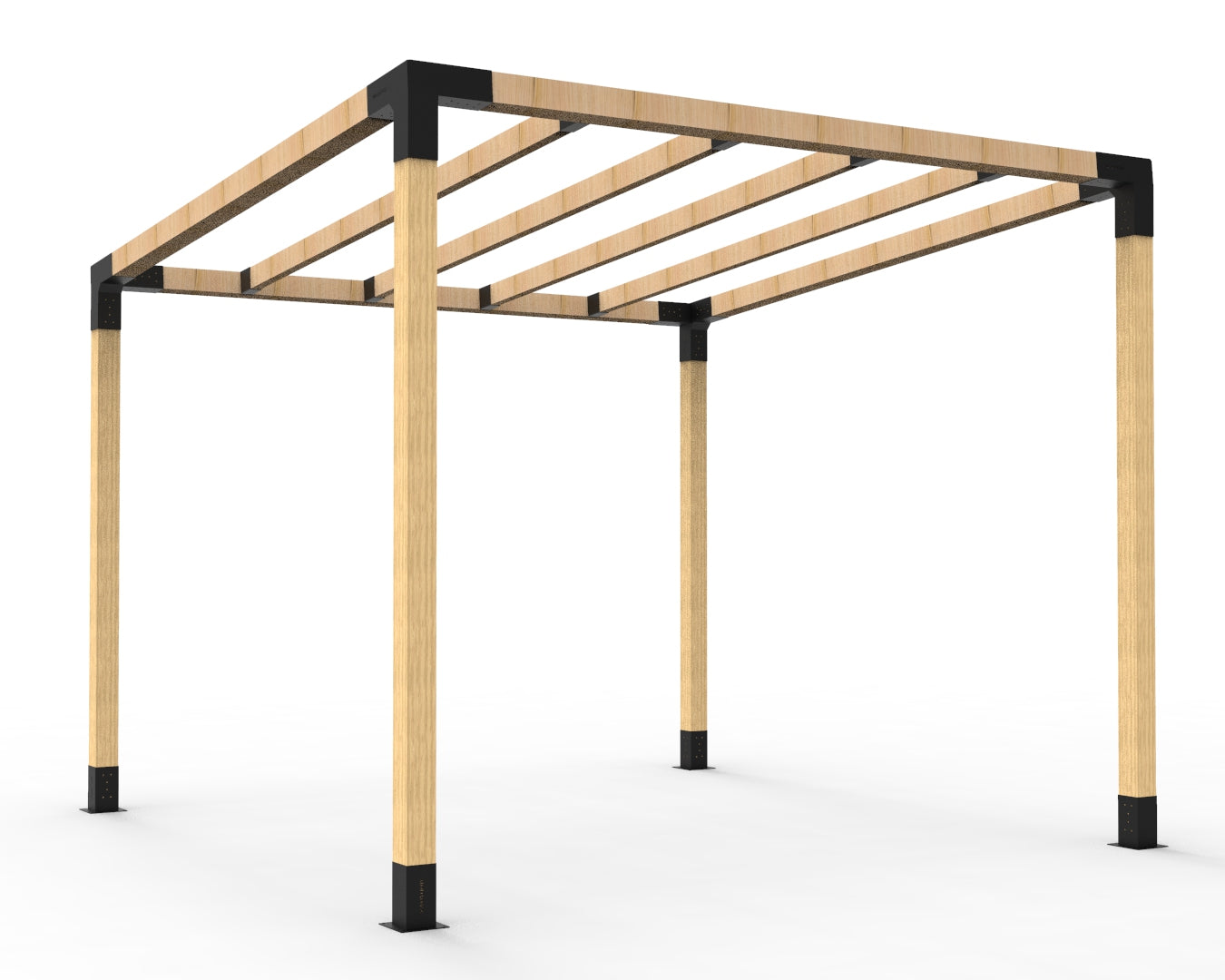

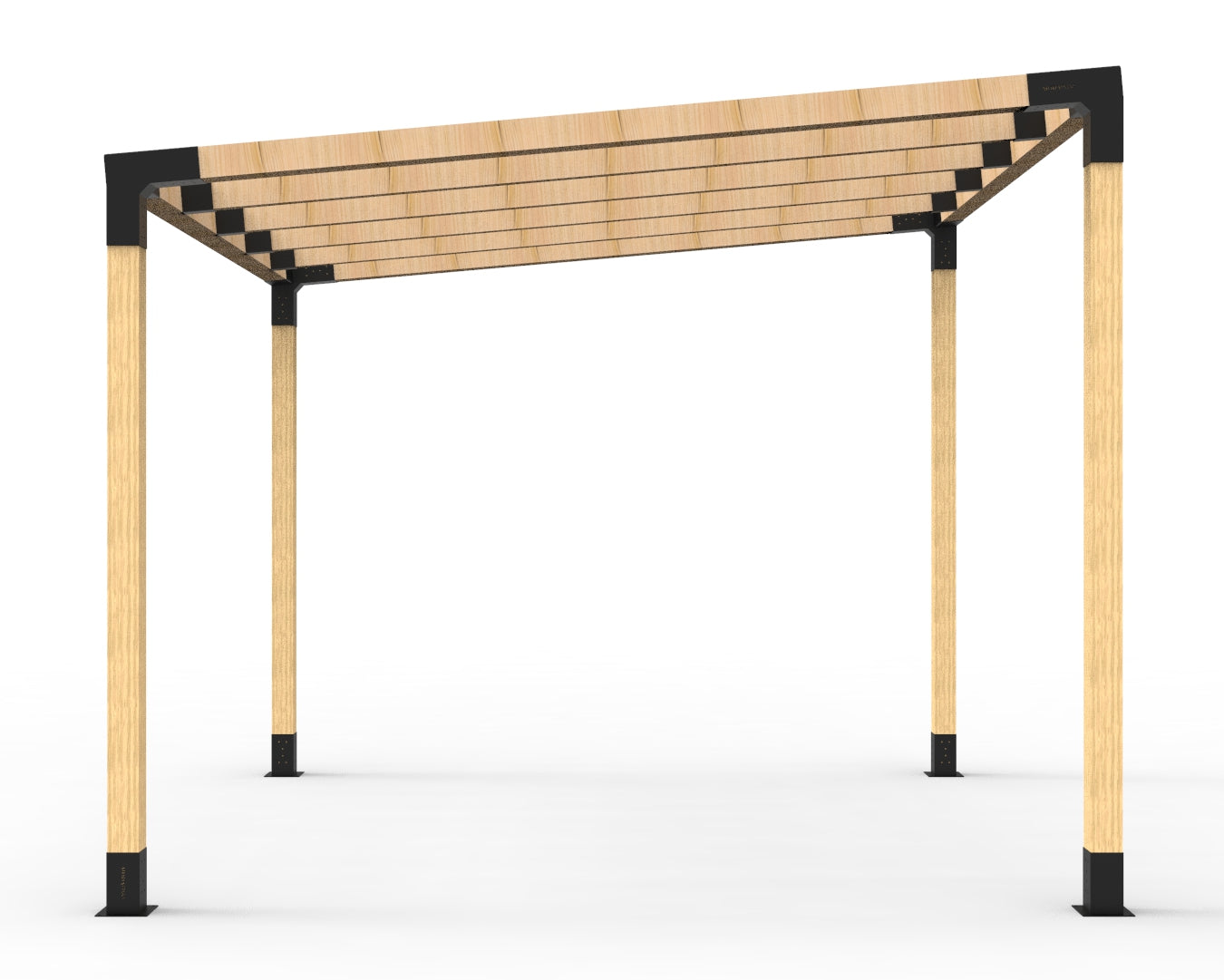

Angled Pergola Kit for 90x90 Timber Posts with Top Rafter Brackets
Timber not included
FREE SHIPPING
Couldn't load pickup availability
Effortlessly assemble a stylish timber angled pergola with a five-degree slope with top rafters using our specially designed brackets, compatible with 90x90 timber posts. Includes:
- Left & Right Side Upward Slope Corner Brackets
- Left & Right Side Downward Slope Corner Bracket
- Top Rafter Brackets for 8 Rafters
- 4 x Base Brackets
- Black Plated Fastening Screws
Strong & Durable, Premium Quality Finish, Versatile and Easy to Assemble Modular Pergola System.
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 Business Days for Dispatch
CLICK HERE to Explore Our Authorised Resellers, Installers & Display Locations
Give us a call (1300 093 808) or send us an email (info@modaprax.com.au) if you need help choosing the right timber sizes. Or reach out to us via our Contact Us page.
Product Details
Features & Inclusions
Key Features
Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel
Inclusions
4 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).
1 x Right Side & 1 x Left Side Upward Slope Corner Brackets
1 x Right Side & 1 x Left Side Downward Slope Corner Brackets
Choice of 8 OR 16 x Top Rafter Brackets for 90x45mm beams
176 x 12g/38mm Black Coated Pan Head Self Tapping Fastening Screws to fasten your brackets securely to the timber.
Modaprax Tips & Instructions
For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.
You can customize your pergola up to 2.5m in height and up to 3.6m spans. For an angled pergola, H1 and H2 will be different. You can estimate H2 based on H1 and the span of the sloped post using the following formula:
H2 = H1 - (Span x 0.087)
So, if you are using a 2.5m post for H1 and the sloped post is 3m, then the post length needed for H2 is:
H2 = 2.5m - (0.087 x 3m) = 2.5m - 0.261m = 2.239m
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 92 x 92mm
Arm Opening (Exterior): 96 x 96mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

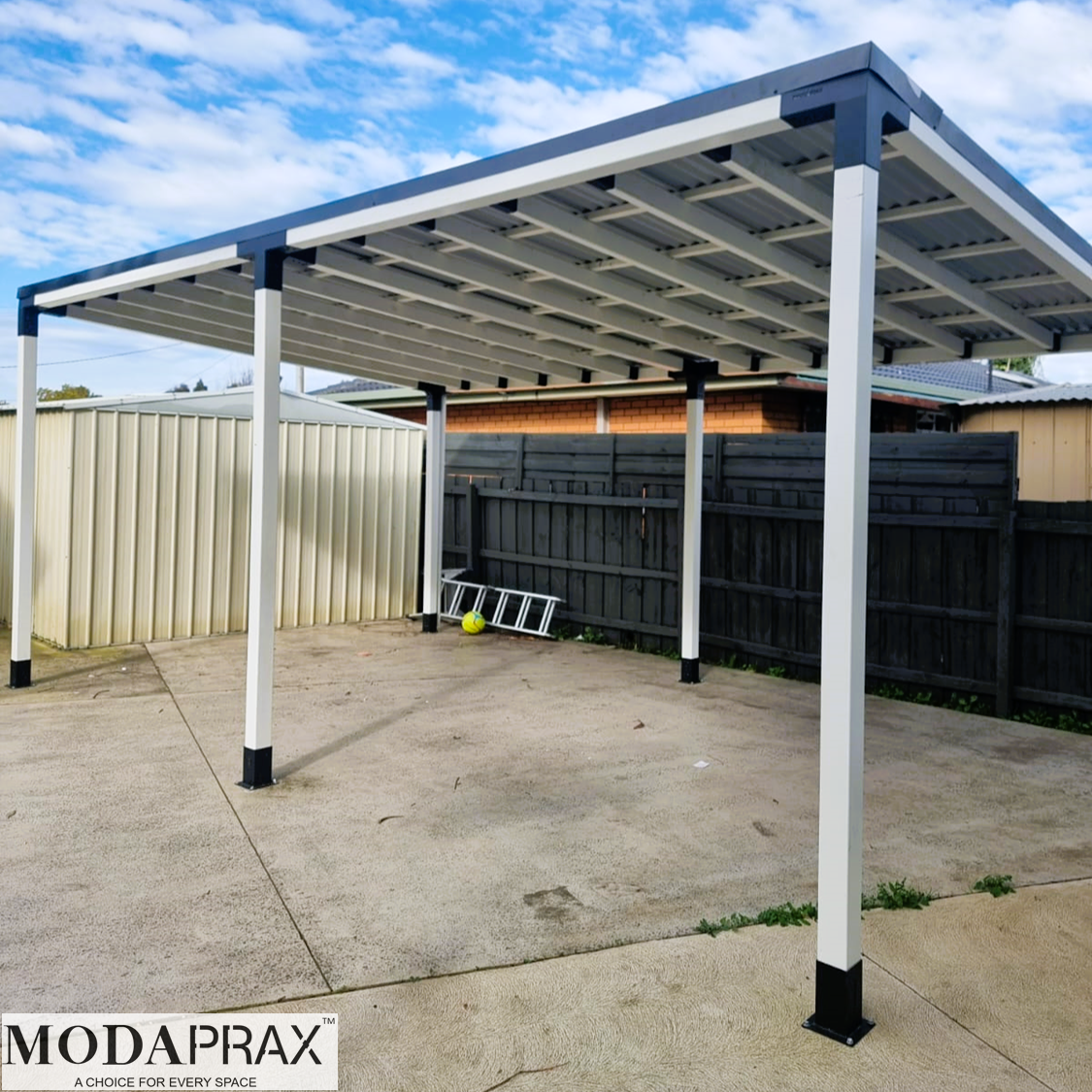

Modaprax Angled Pergola with Rafters
Create a sleek timber pergola with a five-degree slope - min slope for a corrugated roofing - using our specially designed Angled Brackets. Compatible with 90x90 timber posts, this design ensures both ease of assembly of a closed roof and a stylish finish.
Why choose Modaprax?
Strength & Durability: Our brackets lay the foundation for a sturdy frame and structure that is built to last.
Premium Aesthetics & Modern Look: Our brackets not only provide strength, but also add a touch of elegance and modernity to your outdoor space.
Endless Customisation: Unleash your creativity and personalise your pergola like never before! With our brackets, the sky's the limit. Tailor your design to suit your unique space.
Let's elevate your outdoor living experience by building something extraordinary together!
