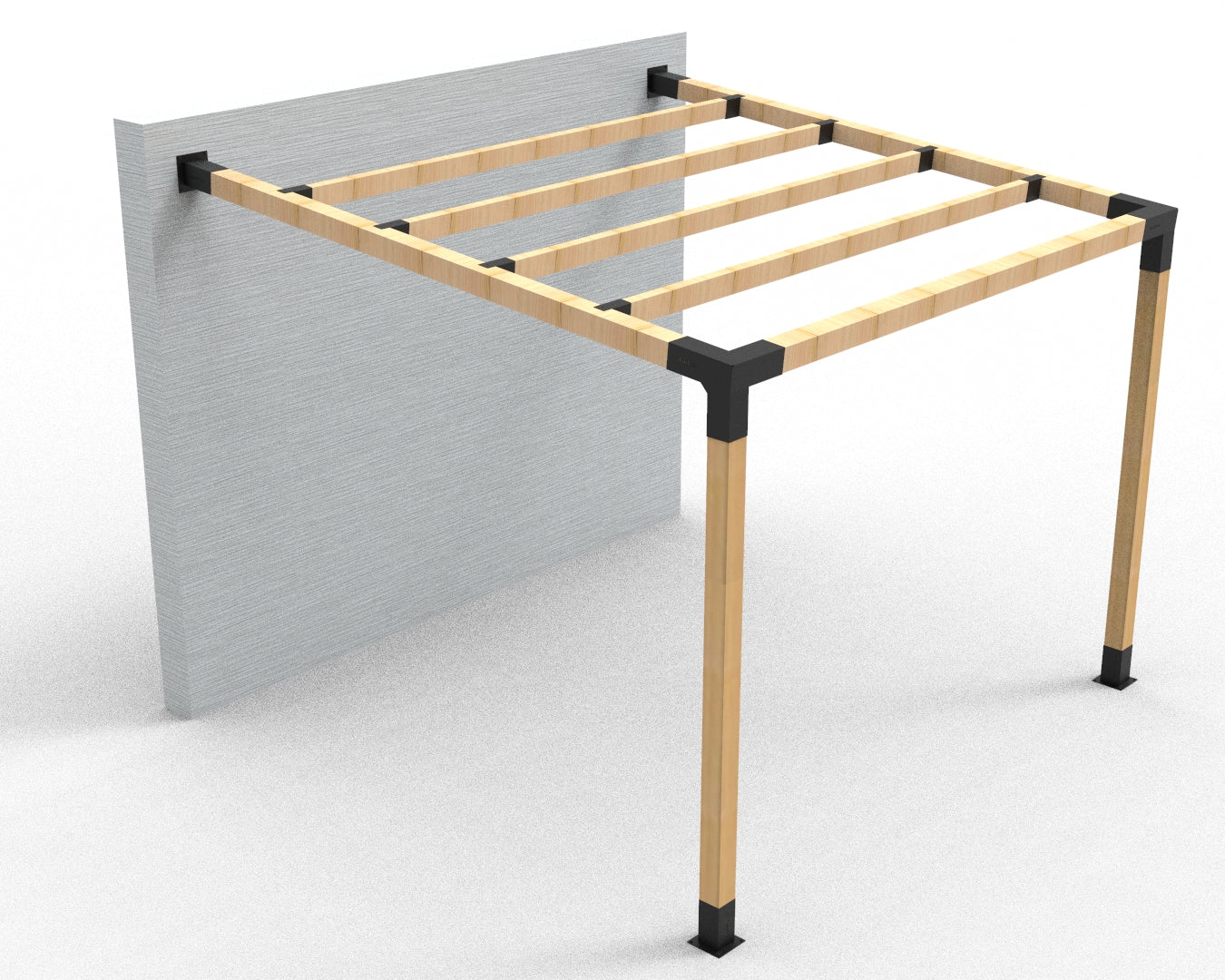

Angled Wall Mounted Pergola Kit for 90x90 Timber Posts with Top Rafters
Timber not included
FREE SHIPPING
Couldn't load pickup availability
The Angled Wall Mounted Pergola with Top Rafters Kit is an easy to assemble modular solution for designing, customising and wall mounting your pergola with a 5 Degree Slope using 90x90 timber posts and 90x45 Rafters.
- Left & Right Side Upward Slope Corner Brackets
- Left & Right Side Downward Slope Mounting Bracket
- 2 x Base Brackets
- 8 Top Rafter Brackets for 90x45mm Rafters
- Black Plated Fastening Screws
Strong & Durable, Premium Quality Finish, Versatile and Easy to Assemble Modular Pergola System.
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 Business Days for Dispatch
CLICK HERE to Explore Our Authorised Resellers, Installers & Display Locations
Give us a call (1300 093 808) or send us an email (info@modaprax.com.au) if you need help choosing the right timber sizes. Or reach out to us via our Contact Us page.
Collapsible content
Features & Inclusions
Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for slick quality finish
10-year limited warranty on steel brackets
2 x Base Brackets: 2 Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).
LH & RH Downward Slope Mounting Brackets: To mount your frame to a wall and create a 5 degree fall.
LH & RH Upward Sloped Corner Brackets to connect posts, create a sturdy angled frame.
8 x Top Rafter Brackets for Four 90x45mm Rafters
104 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets to timber.
Modaprax Tips
For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.
You can customize your mounted pergola up to 2.5m in height and up to 3.6m in length.
Timber Required
Our brackets are designed to seamlessly fit 90x90 timber - available in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
Angled Wall Mounted Pergola Kit
Elevate your outdoor living area with our 90x90 Modaprax Wall Mounted Pergola Kit, designed for effortless assembly and seamless integration with your space.
This versatile kit allows you to securely attach your pergola frame to a wall, creating a sturdy, sloped and stylish structure.
Key Features:
- Sturdy Wall Mounting: Includes two mounting brackets to anchor two timber posts to your wall, creating a slope providing a robust foundation for your pergola.
- Flexible Anchoring: The remaining two posts can be securely anchored to a solid surface like concrete, decking, or stone, ensuring stability.
- Complete Structural Support: Two three-arm downward sloping corner brackets are included to connect all posts, forming a complete and reliable pergola frame.
