Angled Double Wall Mounted Pergola Kit for 90x90 Timber Posts
Timber not included
FREE SHIPPING
Couldn't load pickup availability
The Angled Double Wall Mounted Pergola Kit is an easy to assemble modular solution for designing, customising and wall mounting your pergola with a 5 Degree Slope using 90x90 timber posts to the size that fits best your space.
Inclusions:
- Left & Right Side Upward Slope Corner Brackets
-
Upward Slope Extension Bracket
- 3 x Downward Slope Mounting Bracket
- 3 x Base Brackets
-
Black Plated Fastening Screws
Strong & Durable, Premium Quality Finish, Versatile and Easy to Assemble Modular Pergola System.
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 Business Days for Dispatch
CLICK HERE to Explore Our Authorised Resellers, Installers & Display Locations
Give us a call (1300 093 808) or send us an email (info@modaprax.com.au) if you need help choosing the right timber sizes. Or reach out to us via our Contact Us page.
Product Details
Features & Inclusions
Bracket Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for slick quality finish
10-year limited warranty on steel brackets
3 x Base Brackets: 2 Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).
3 x Downward Slope Mounting Brackets: To mount your frame to a wall and create a 5 degree fall.
LH & RH Upward Sloped Corner Brackets to connect posts, create a sturdy angled frame.
1 x Upward Slope Slope Extension Brackets
128 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets to timber.
Modaprax Tips
For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.
You can customize your extended mounted pergola up to 2.5m in height and spans between up to 3.6m in length.
Timber Required
Our brackets are designed to seamlessly fit 90x90 timber - available in a premium dressed finish. Personalize your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 92 x 92mm
Arm Opening (Exterior): 96 x 96mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

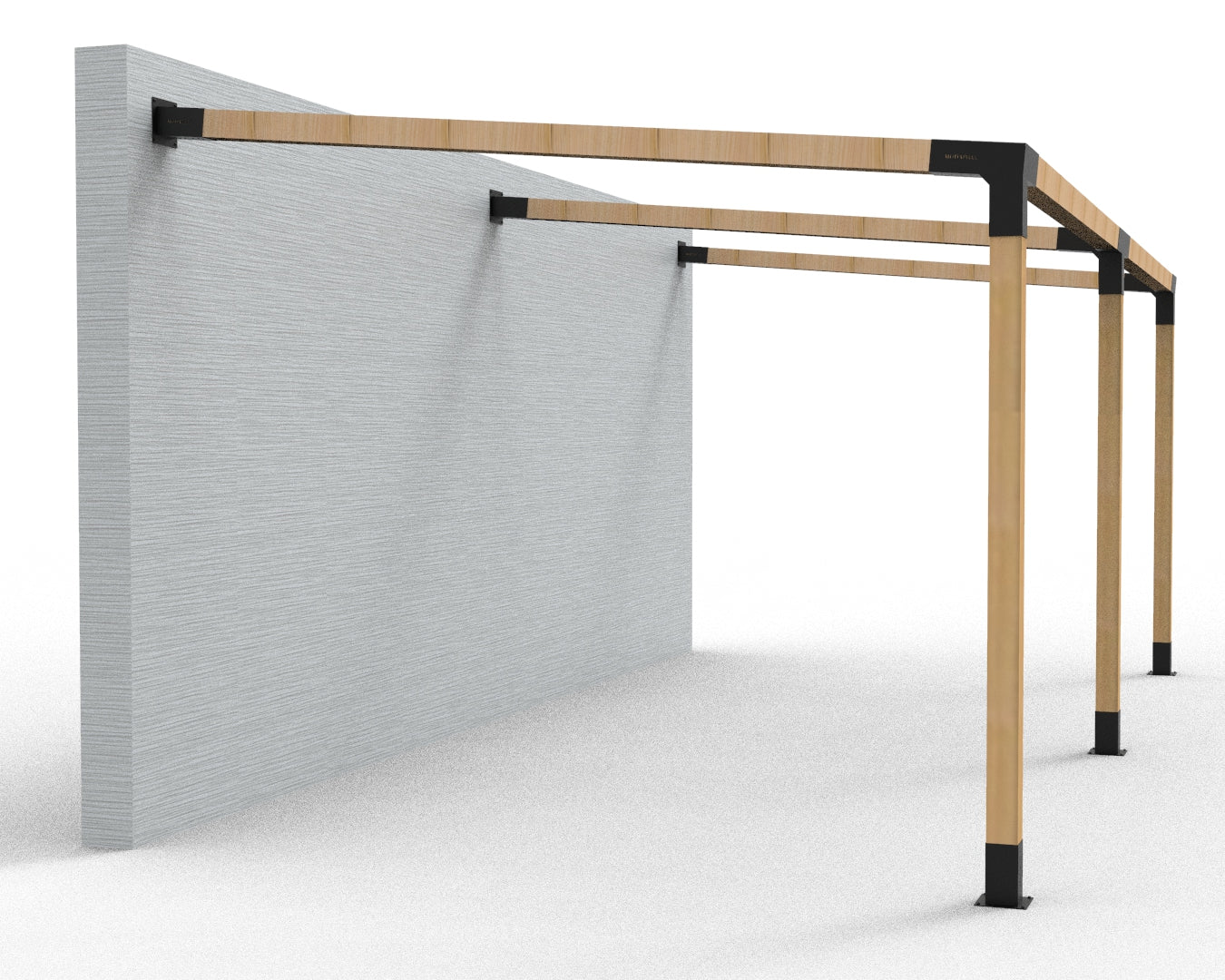

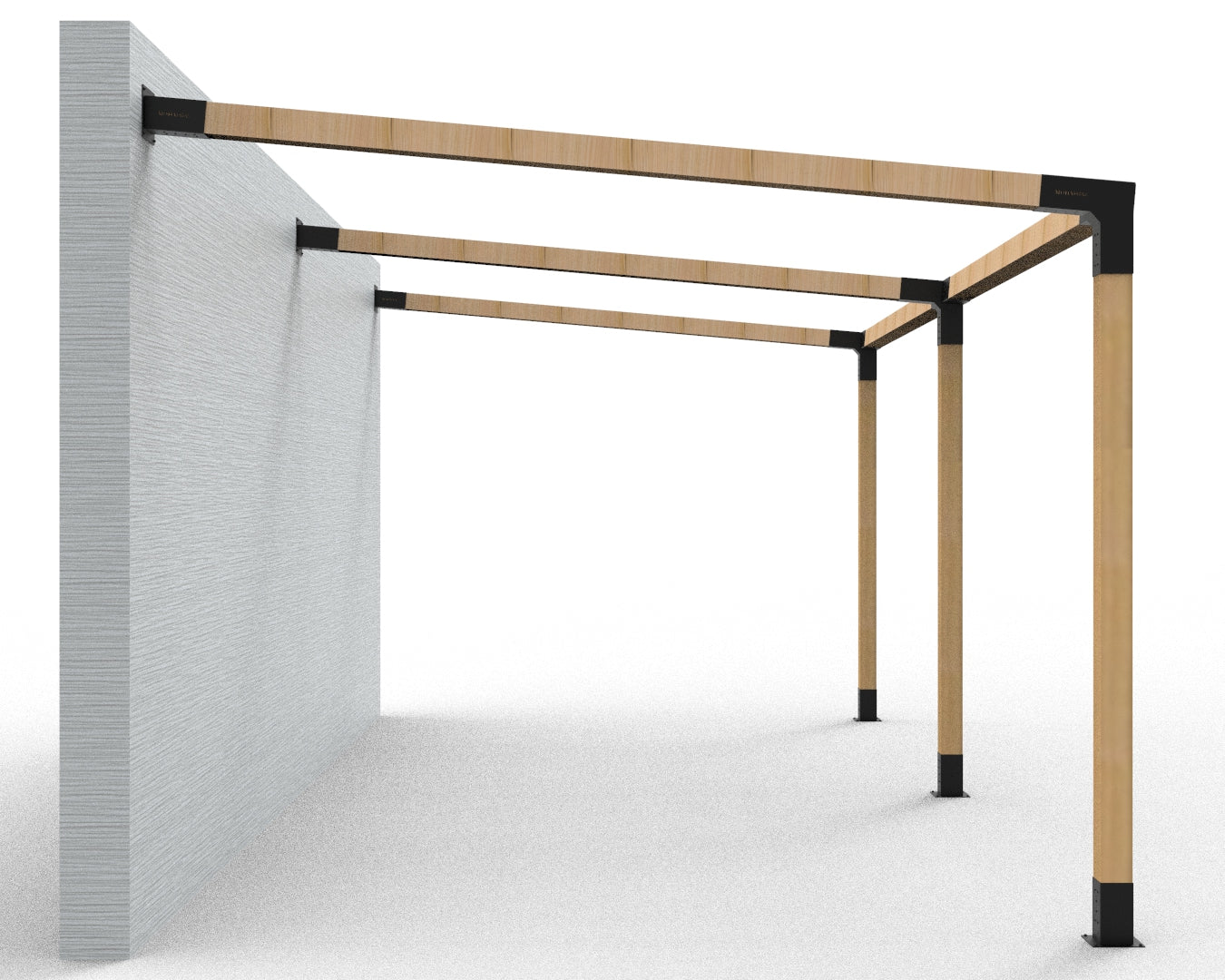

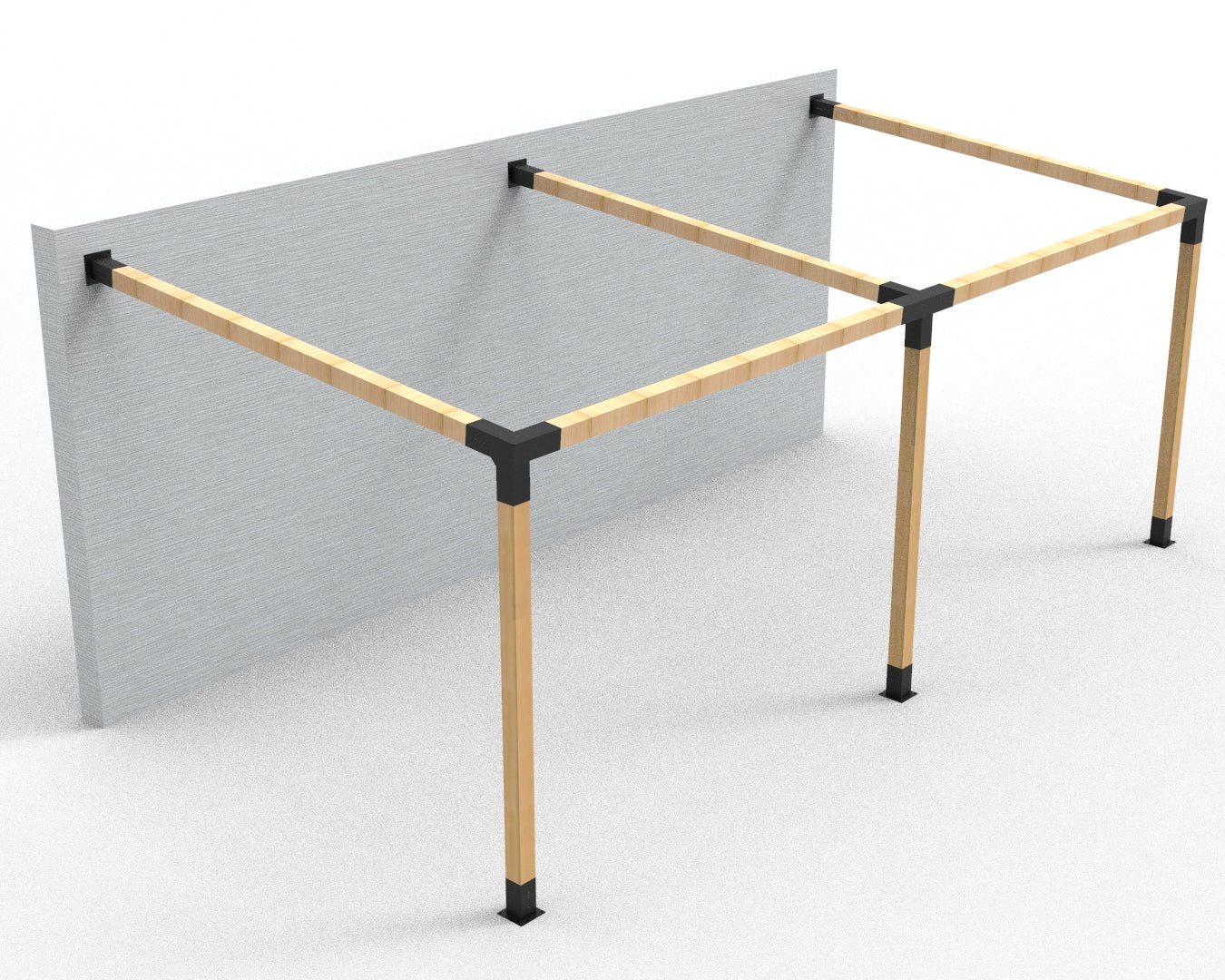

Modaprax Double Wall Mounted Pergola Kit
Elevate your outdoor living area with our 90x90 Modaprax Double Wall Mounted Pergola Kit, designed for effortless assembly and seamless integration with your space.
This versatile kit allows you to securely extend and attach your pergola frame to a wall, creating a sturdy and stylish structure.
Key Features:
- Sturdy Wall Mounting: Includes six base brackets to anchor three timber posts to your wall, providing a robust foundation for your pergola.
- Flexible Anchoring: The remaining three posts can be securely anchored to a solid surface like concrete, decking, or stone, ensuring stability.
- Customizable Length: The kit features a four-arm extension bracket that allows you to extend and customize the length of your pergola frame, adapting perfectly to your unique space.
- Complete Structural Support: Two three-arm corner brackets are included to connect all posts, forming a complete and reliable pergola frame.
