Base Pergola Bracket for 90x90 Timber Posts
Couldn't load pickup availability
Strong & Durable Steel Base Bracket with Premium Powder Coating.
An essential component that sets the stage for a sturdy foundation and easy assembly of your pergola with our modular system.
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 business days for Dispatch
Product Details
Features & Inclusions
Key Features
Precision: Designed for 90x90mm Timber (No Shaving)
Versatility: Four 10mm securing holes for anchoring to surface or wall mounting.
Simplicity: Easy Assembly & Customisation
Strong & Durable: Engineer Certified to Create a Solid Foundation
4 x Base Brackets Designed for 90x90mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel
Fastening Hardware
32 x 12G 38mm Black Coated Pan Head Self Tapping screws to secure timber to bracket
A Note on Anchoring Hardware
Our brackets come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. We have precision crafted their size, considering the internal welding of the brackets

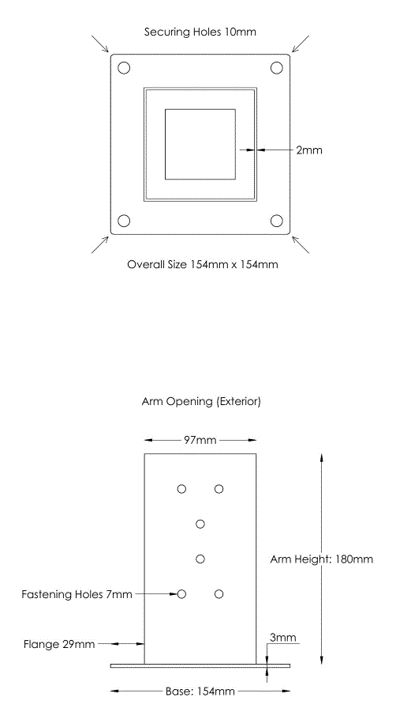

Dimensions
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180 mm
Steel Thickness: 2mm
Base dimensions: 156 x 156mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm
Modaprax Tips
For instructions on how to install these base brackets for your Pergola, please access the Modaprax Instructions Guide here.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

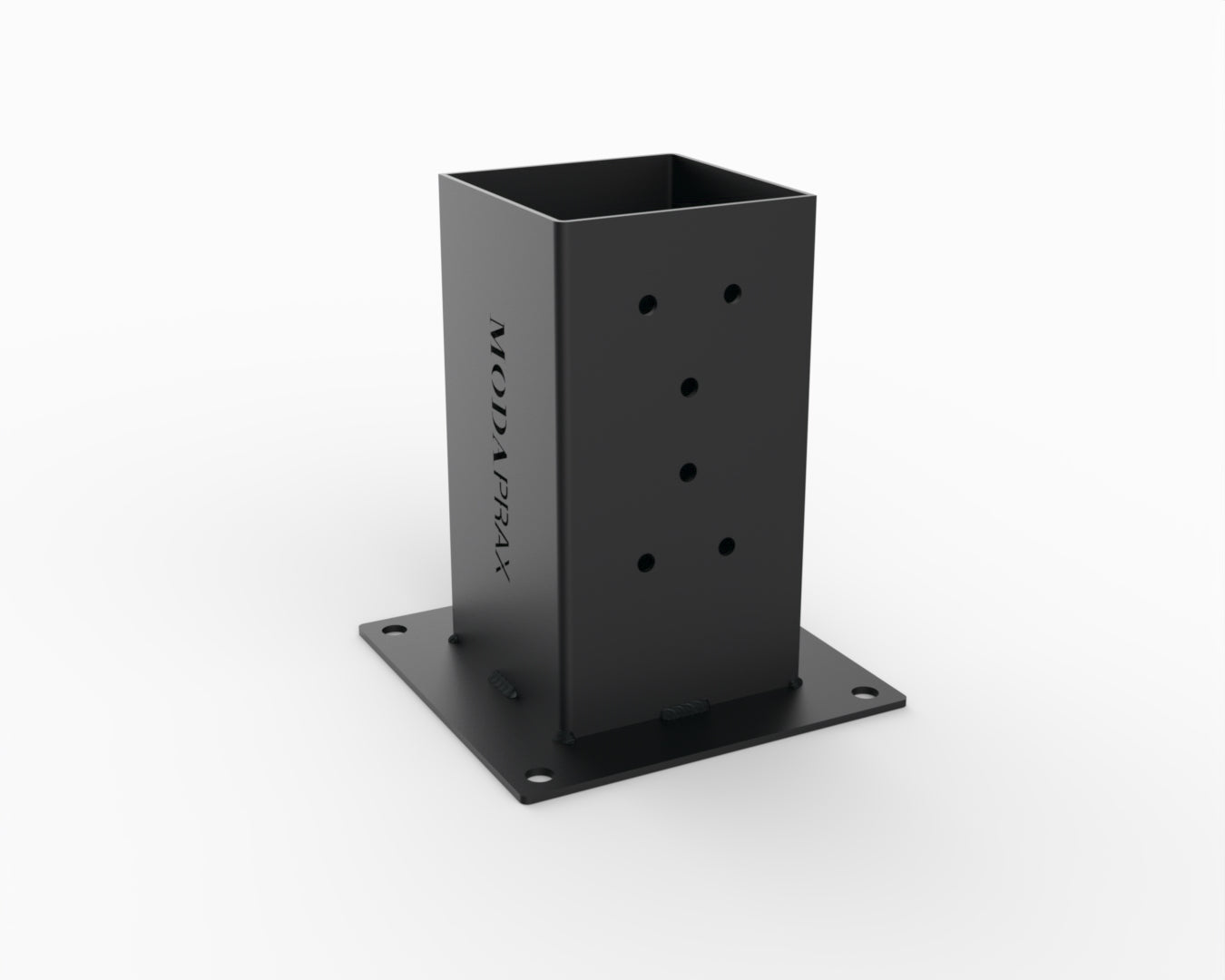

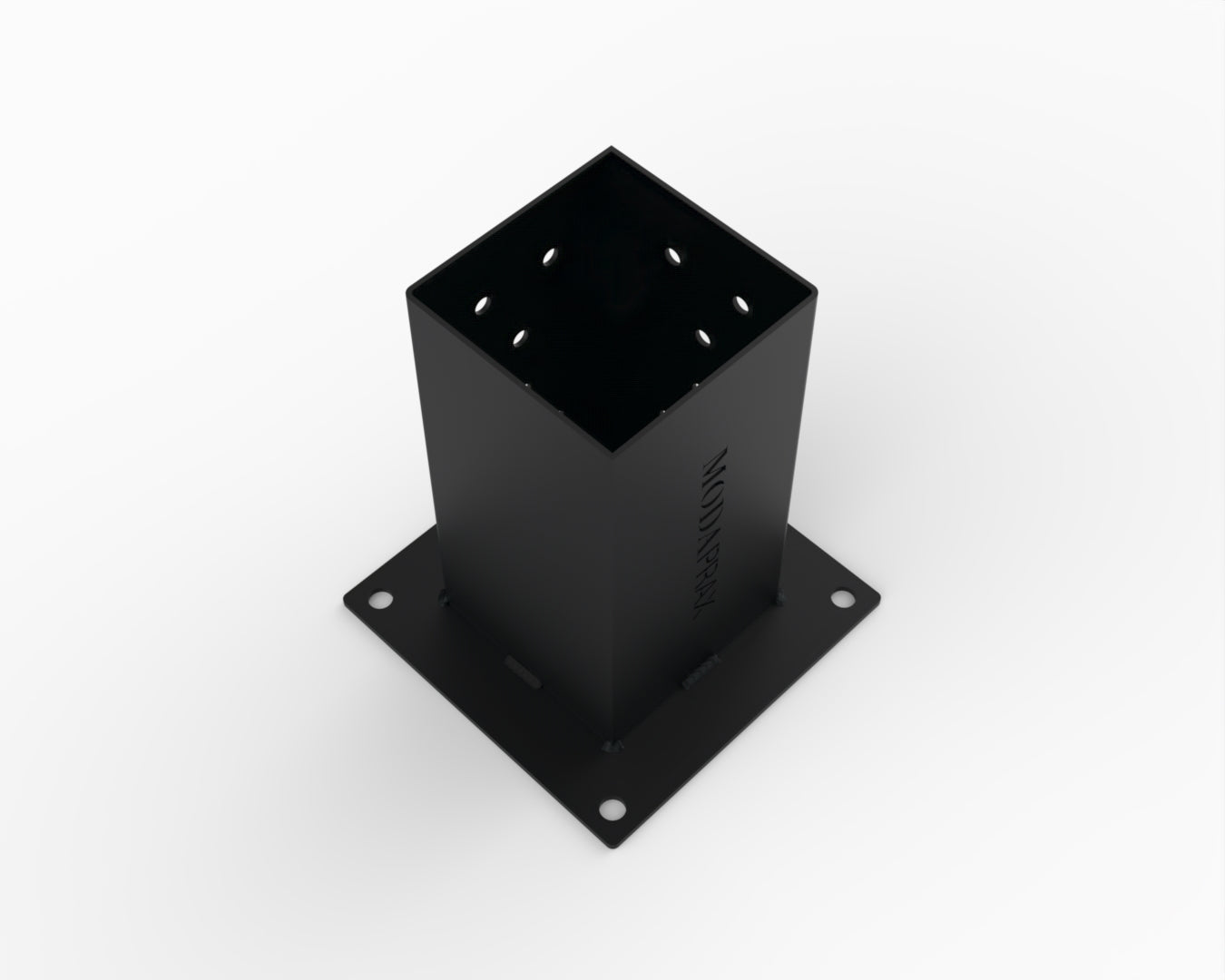

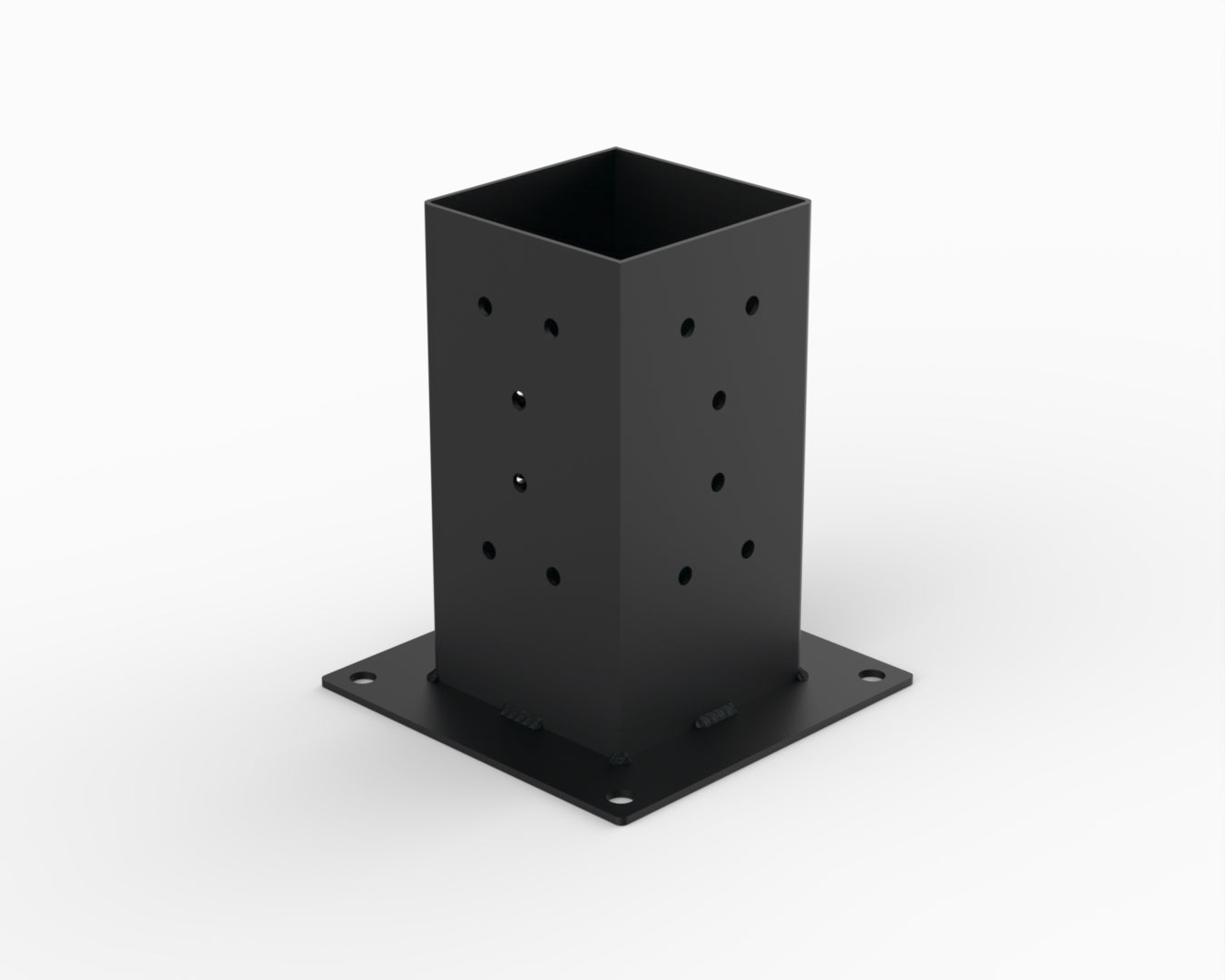

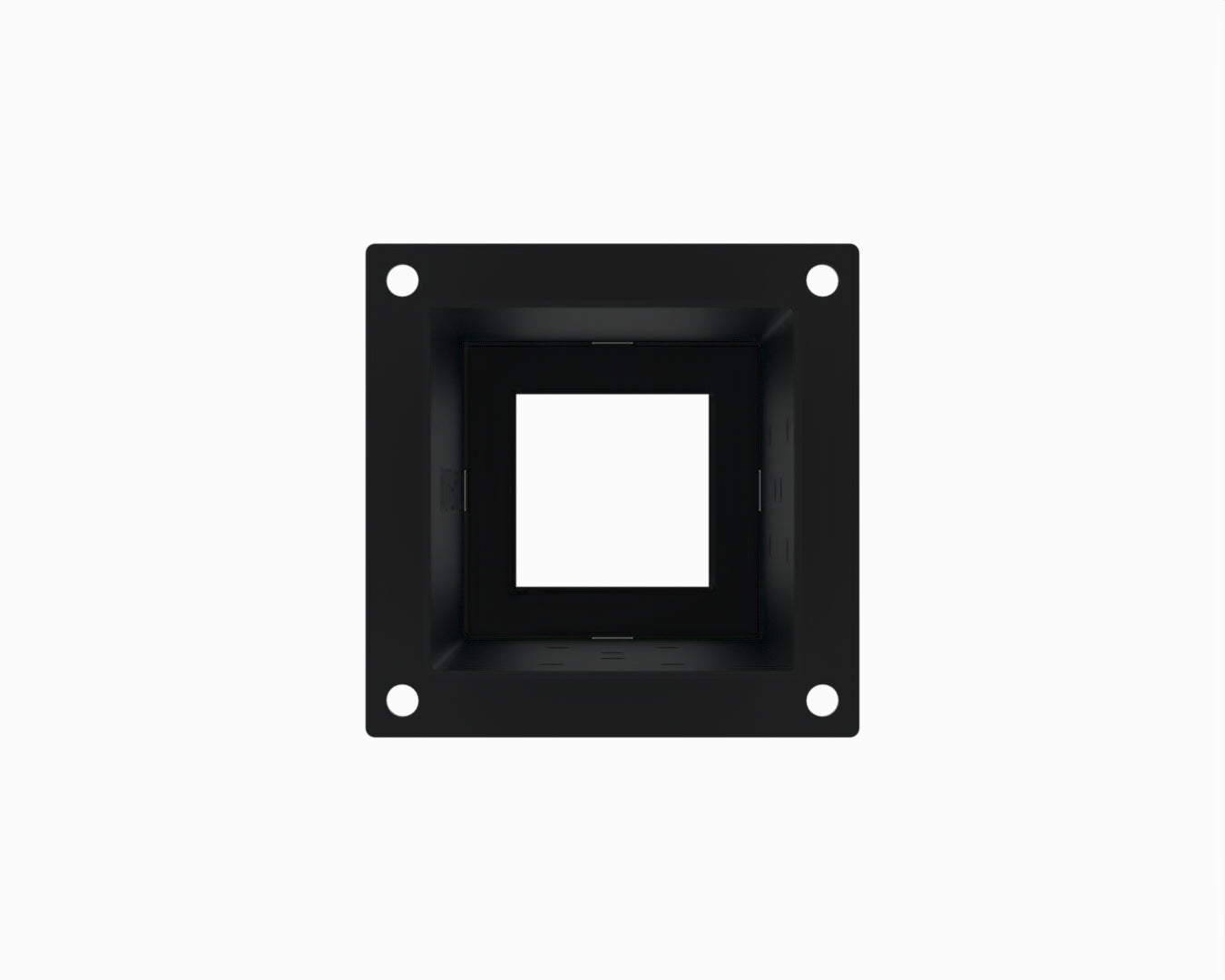

Modaprax Base Bracket

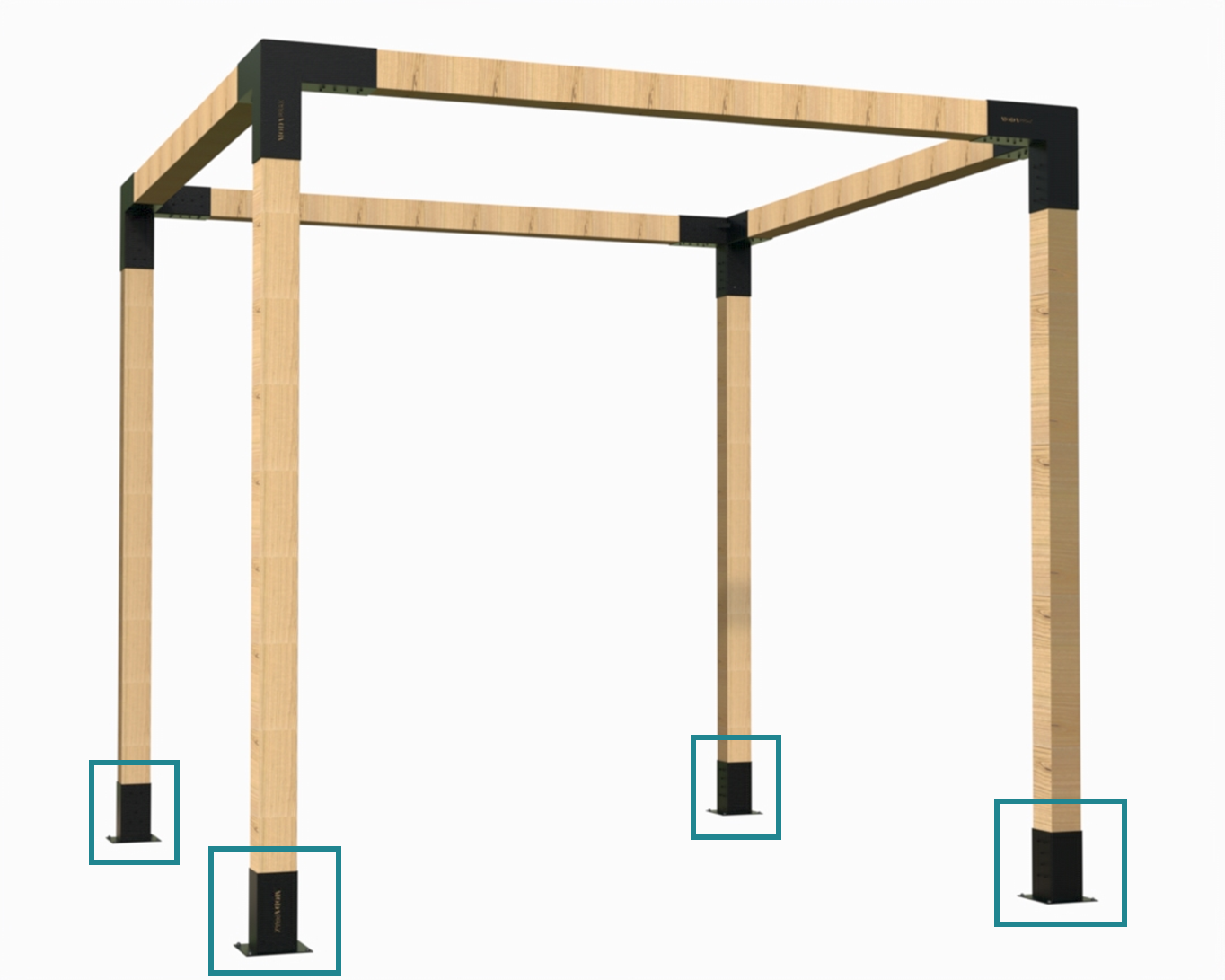

Sets the foundation for your pergola or gazebo as part of an easy to assemble modular system.

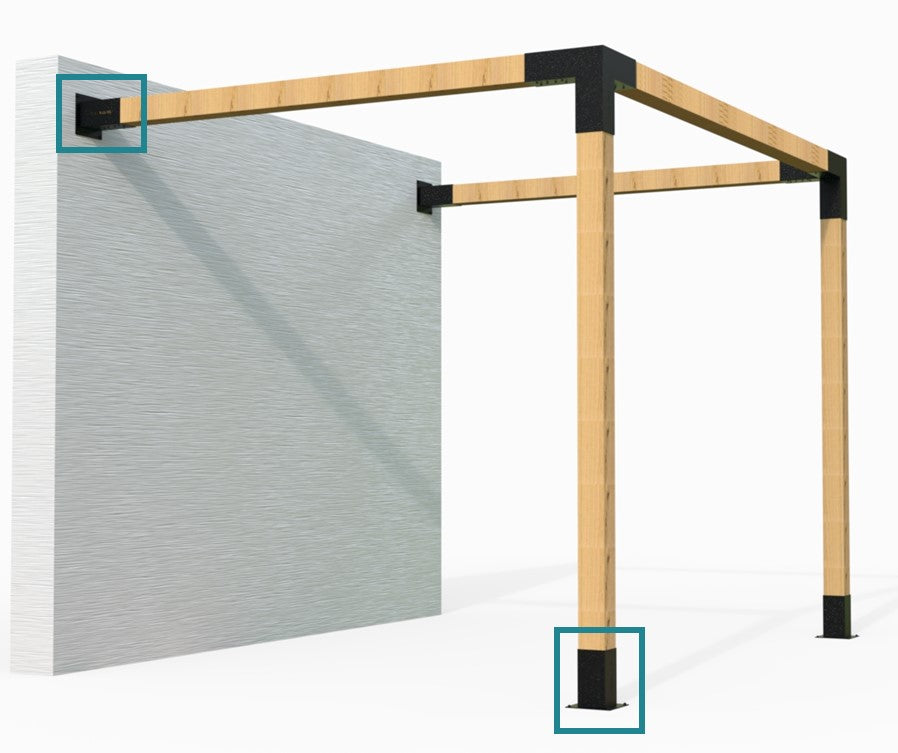

The base of the bracket has four 10mm sized securing holes that allow you to anchor your 90x90mm pergola posts to a solid surface or mount the posts on a wall.
