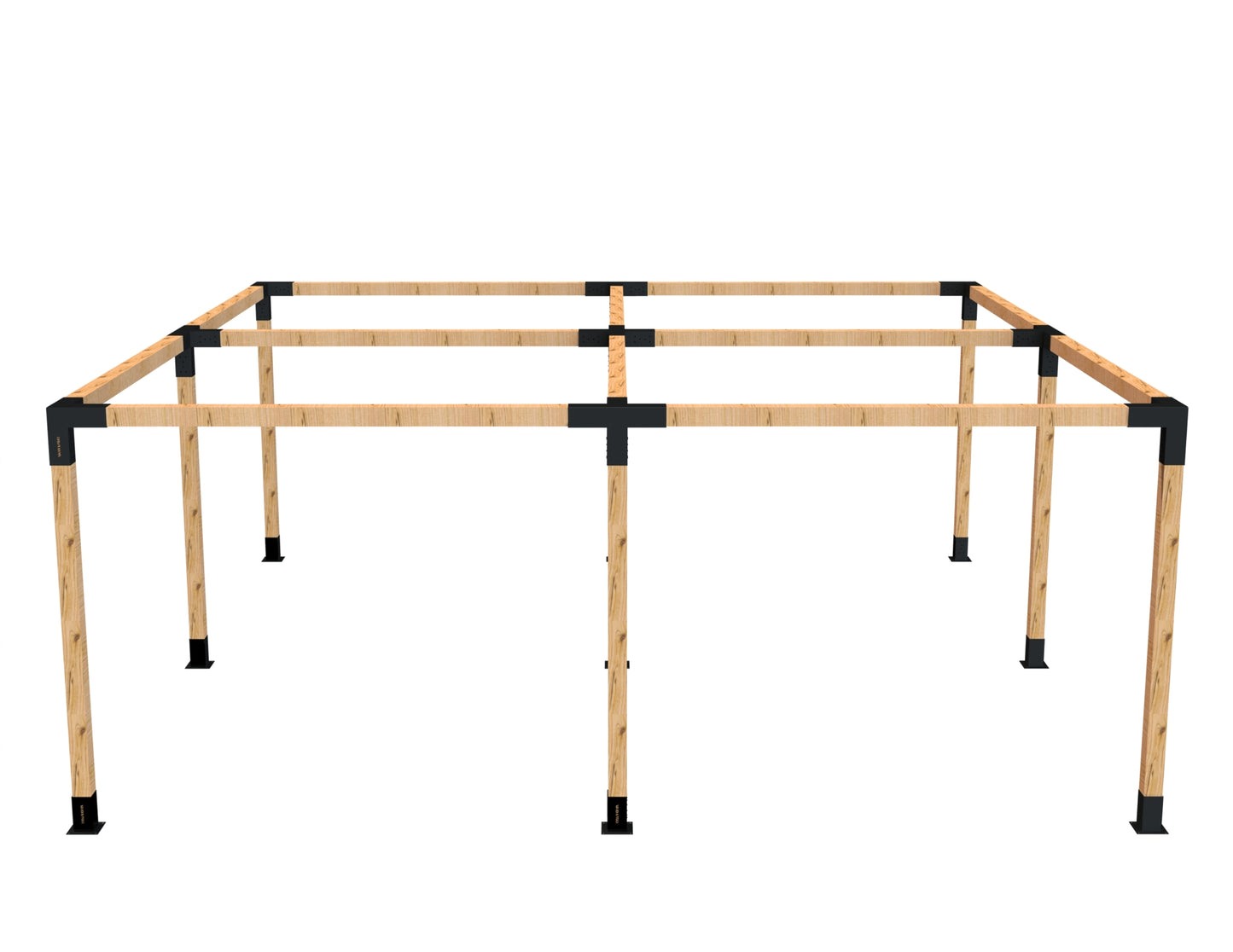

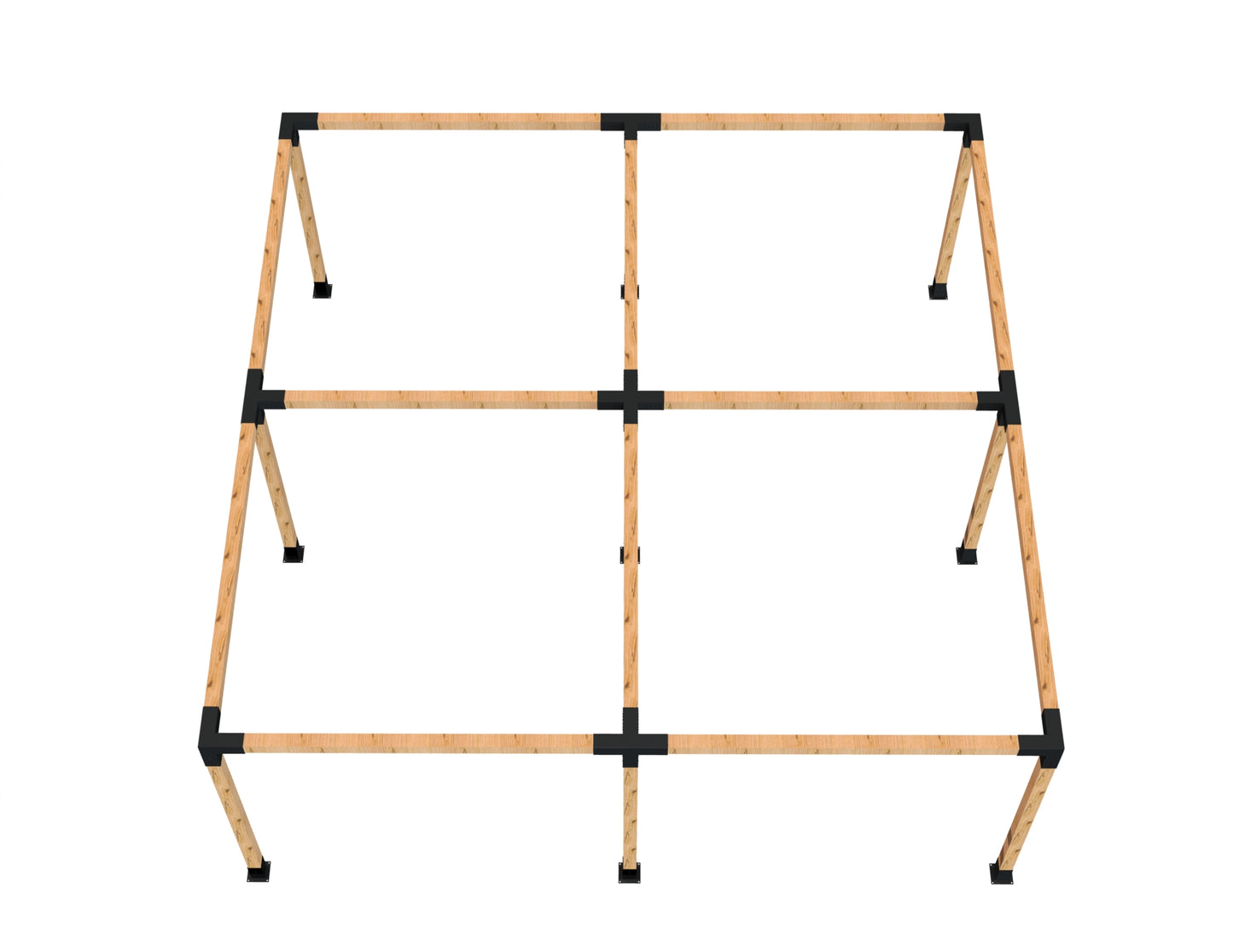

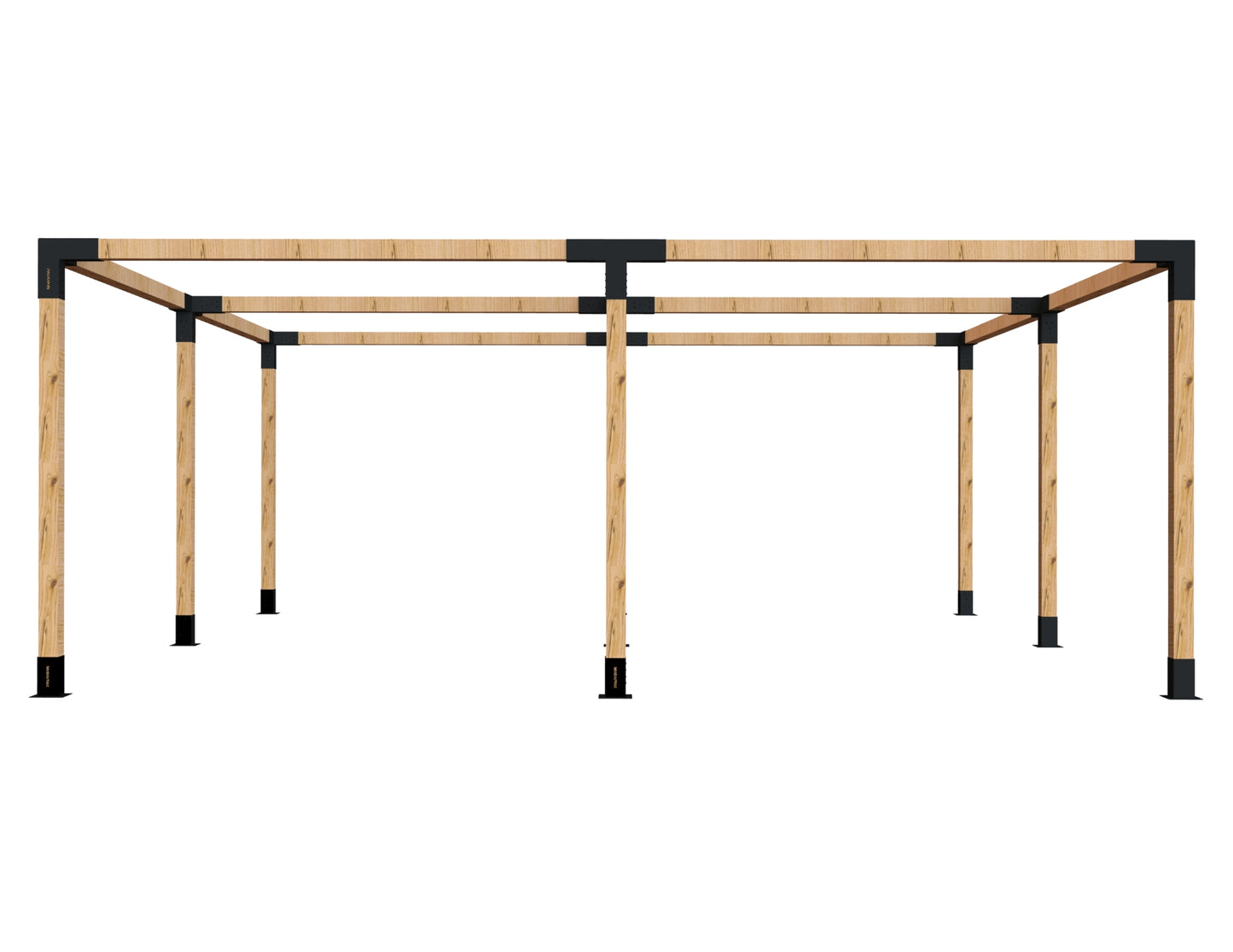

Expanded 'Four Squares' Pergola Kit for 90x90 Timber Posts

Bracket Features Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year limited warranty on steel brackets

9 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).

1 x FiveArm Expansion Bracket to expand the pergola from the centre.

4 x Extension Brackets to connect posts and extend the length of your pergola.

4 x Corner Brackets to connect posts and create a sturdy frame.

392 x 12g Black Plated Fastening Screws to securely fasten brackets to timber.

For instructions on how to install a Modaprax Pergola with Shade Sail, please access the Modaprax Instructions Guide here.

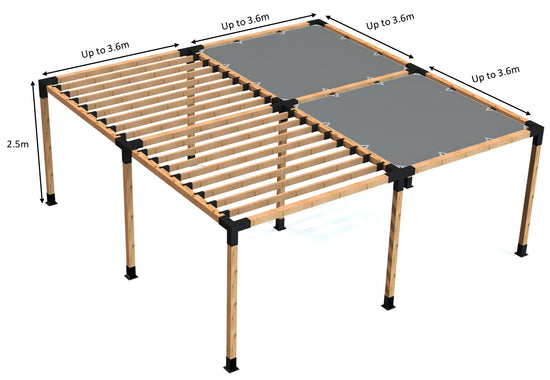

You can customize your extended pergola up to 2.5m in height and spans between up to 3.6m.

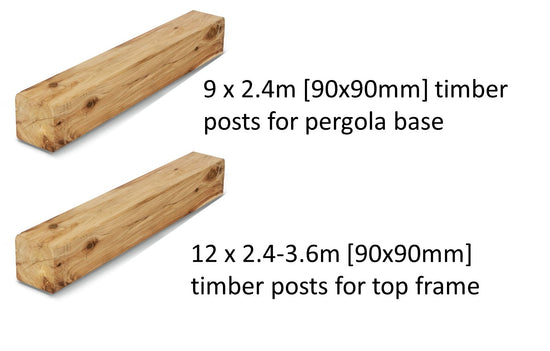

Our brackets are designed to seamlessly fit 90x90 timber - available in a premium dressed finish. Personalize your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.

Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180mm
Steel Thickness: 2mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
