Modaprax

Shade Sail Pergola Kit for 90x90 Timber posts with Privacy Screen Rails

Timber not included

Regular price $949.00 AUD
Regular price Sale price $949.00 AUD
Sale Sold out
Tax included.

FREE SHIPPING

Shade Sail Size
Privacy Rails

The 90x90 Shade Sail Pergola Kit with Privacy Screen Rails is an easy to assemble modular solution for building & customising your timber pergola. The steel rails make it easy to install 90x45mm and 140x45mm beams to create a privacy screen.

CLICK HERE to Explore Our Authorised Resellers & Display Locations

  • FREE SHIPPING to anywhere in Australia
  • IN STOCK, 2 business days for Dispatch

Give us a call (1300 093 808) or send us an email (info@modaprax.com.au) if you need help choosing the right timber sizes. Or reach out to us via our Contact Us page.

Product Details

Features & Inclusions

Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective powder coating
Laser-cut, folded and internally welded for slick quality finish
10-year limited warranty on steel brackets

4 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).

4 x Corner Brackets to connect posts and create a sturdy frame.

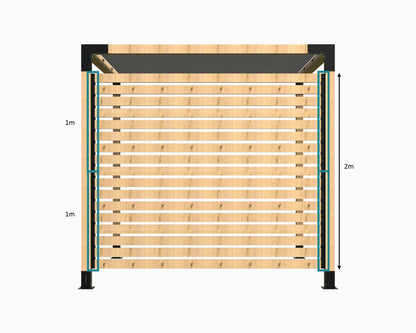

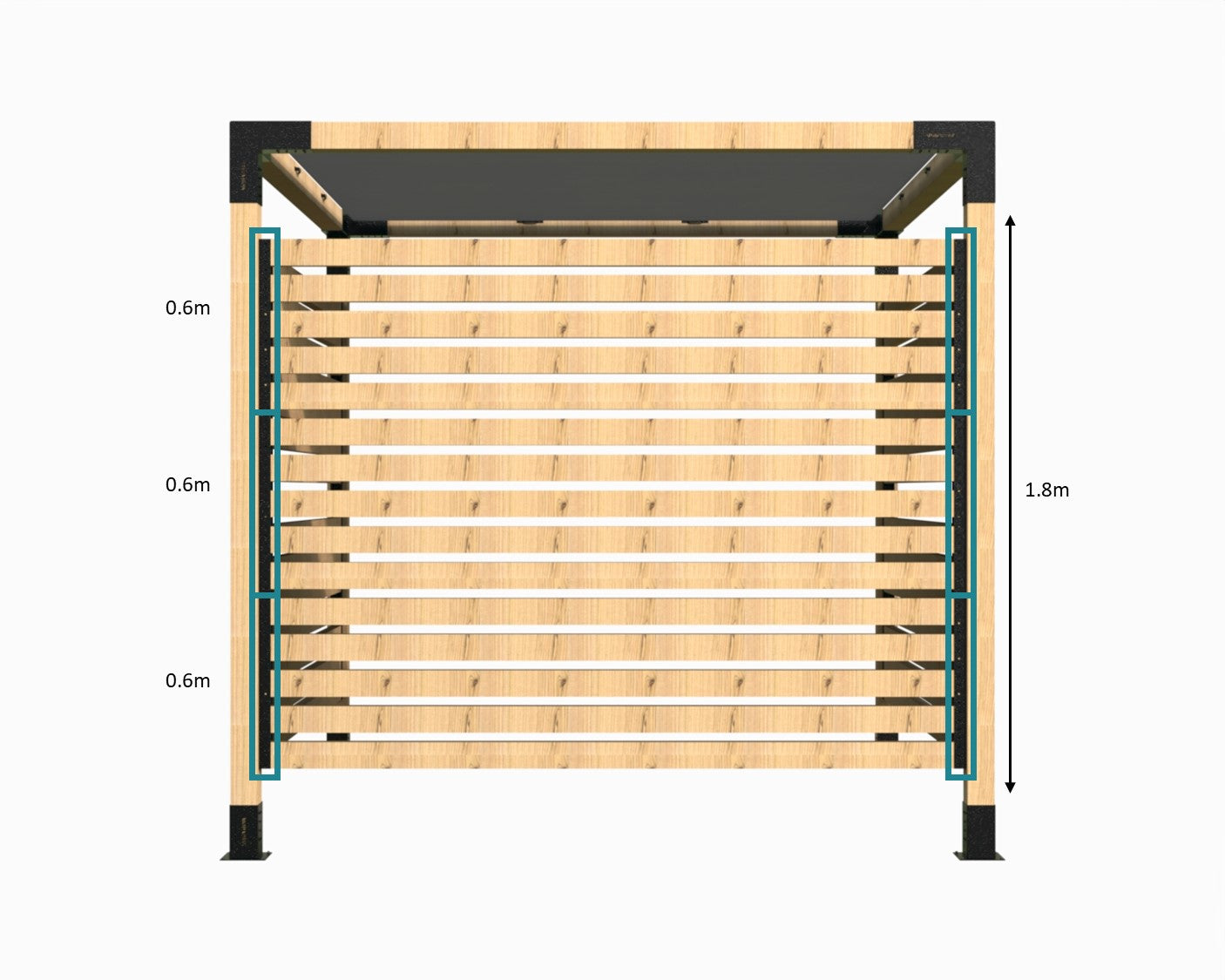

Privacy Screen Rails (2 x 1m or 6 x 0.6m) to install 90x45mm or 140x45mm timber posts to your pergola

1 x Shade Sail with several size options: 2.24x2.24m, 2.24x2.84m, 2.84x2.84m, 2.84x3.44m & 3.44x3.44m.

Note: Shade Sail sizes designed to fit standard timber lengths available at your timber warehouse (e.g. 2.24x2.24m to fit 2.4x24m or 2.84x2.84m with 3x3m)

12g Black Plated Fastening Screws to securely fasten brackets to timber.

Modaprax Tips & Instructions

For instructions on how to install a Modaprax Pergola, please access the Modaprax Instructions Guide here.

You can customize your timber pergola with wall posts up to 2.5m in height and between 2.4m to 3.6m in span length.

N.B. Allow for approx. 16cm additional span for the timber relative to shade sail. For example, if you choose a 2.84x2.84m shade sail, timber should be 3x3m. This gives you a 6-8cm spacing on each side after stretching the shade sail with the tension straps.

files/Timber_Dimensions_for_Modaprax_Shade_Sail_Pergola_with_Wall_Posts.png

Timber Required

Our brackets are designed to seamlessly fit 90x90 timber - available in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.

files/Timber_Required_for_Modaprax_Shade_sail_Pergola_with_Wall_Posts_103d14cd-c813-428b-bf05-57134f06f1db.png

Product Specs

Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

Bracket Specs:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm

Specification of Side Post Bracket:
Designed for your choice of 90x35mm and 90x45mm timber fit
Arm Opening (Interior): 92 x 37/47mm
Arm Opening (Exterior): 96 x 41/51mm
Steel Thickness: 2mm Steel
Bracket dimensions (L x W x H): 140mm x 42mm x 97mm
Six Fastening Holes: 7 mm

Shade Sail Features:
Synthetic high density polyethylene knitted fabric
Tension straps with buckles to tighten shade sail to Pergola Frame
Easy to connect and take down

Note: The polyethylene knitted fabric of the shade sail may seem smaller at first, but it's crafted for a snug fit, accommodating stretch over time for lasting flexibility in your pergola

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
