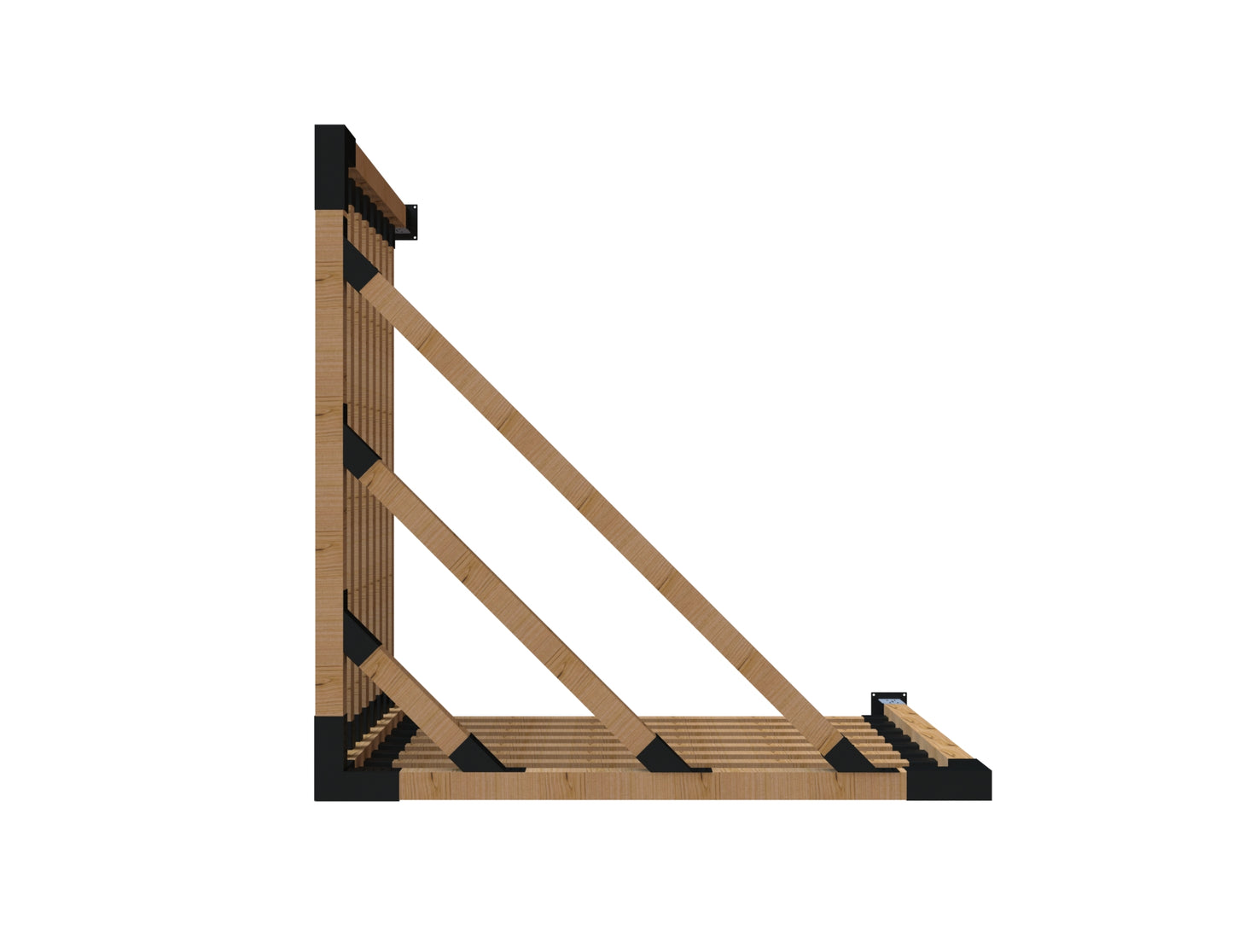

Triangle Pergola Kit for 90x90 Timber posts

Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective powder coating
Laser-cut, folded and internally welded for slick quality finish
10-year limited warranty on steel brackets

3 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).

2 x L-Brackets to connect to Corner and create the frame.

1 x Corner Bracket to connect posts to 2 Arm L-Brackets and create a sturdy frame.

6 x 45-Degree Support Brackets to install three 90x90 posts to the top.

32 x Side Brackets (optional) to install your choice of eight 90x35mm or 90x45mm timber side posts to your pergola.

292 x 12g Black Plated Fastening Screws to securely fasten brackets to timber.

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.

For instructions on how to install a Modaprax Pergola, please access the Modaprax Instructions Guide here.

You can customize your Triangle Timber Pergola with wall posts up to 2.5m in height and up to 3m in span length.

Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm

Specification of Side Post Bracket:
Designed for your choice of 90x35mm and 90x45mm timber fit
Arm Opening (Interior): 92 x 37/47mm
Arm Opening (Exterior): 96 x 41/51mm
Steel Thickness: 2mm Steel
Bracket dimensions (L x W x H): 140mm x 42mm x 97mm
Six Fastening Holes: 7 mm

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.

We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
