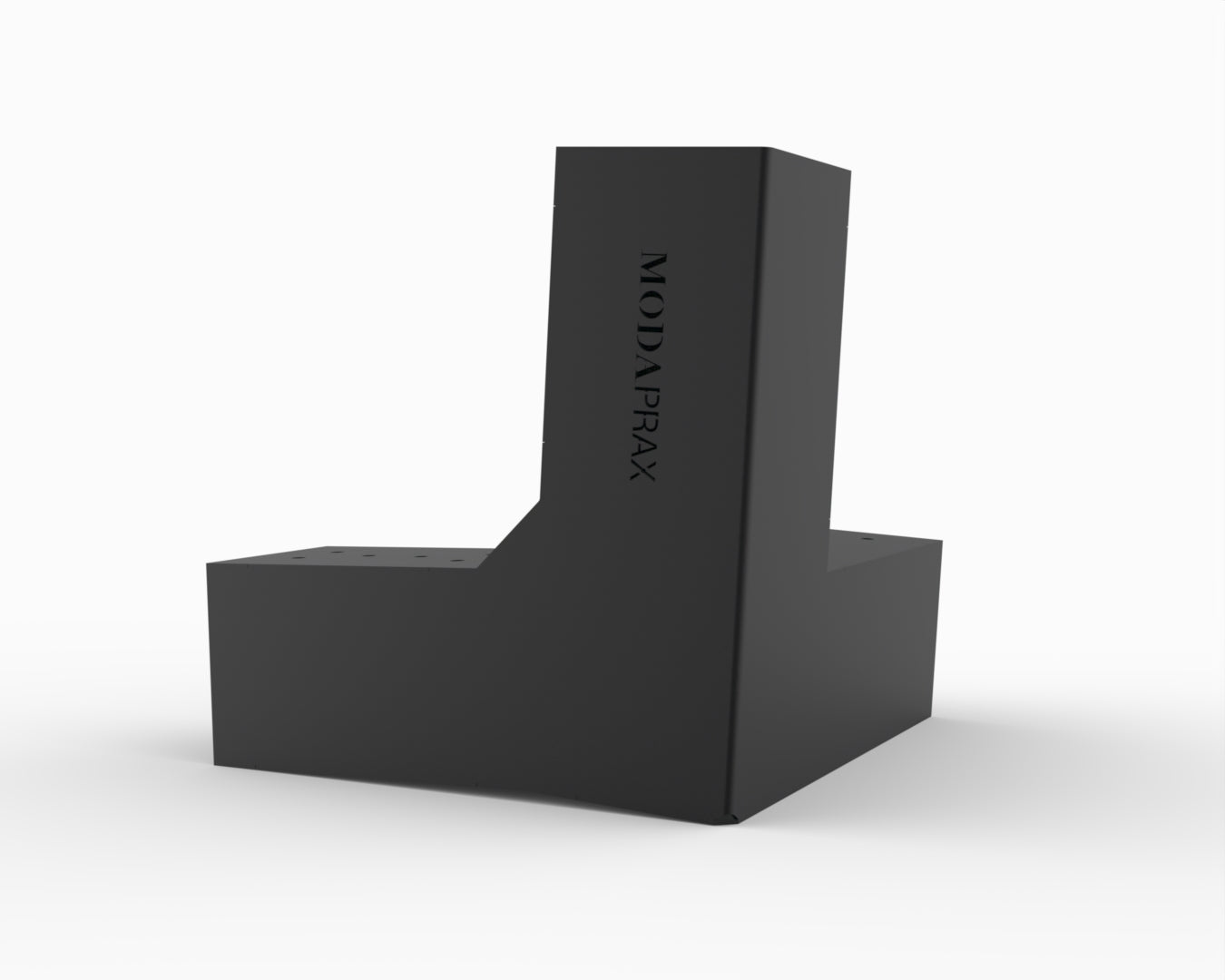

Upward Angled Corner Bracket for 90x90 Posts

Key Features

Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

Inclusions

1 x Right Side & 1 x Left Side Upward Slope Corner Brackets

48 x 12g/38mm Black Coated Pan Head Self Tapping Fastening Screws to fasten your brackets securely to the timber.

For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.

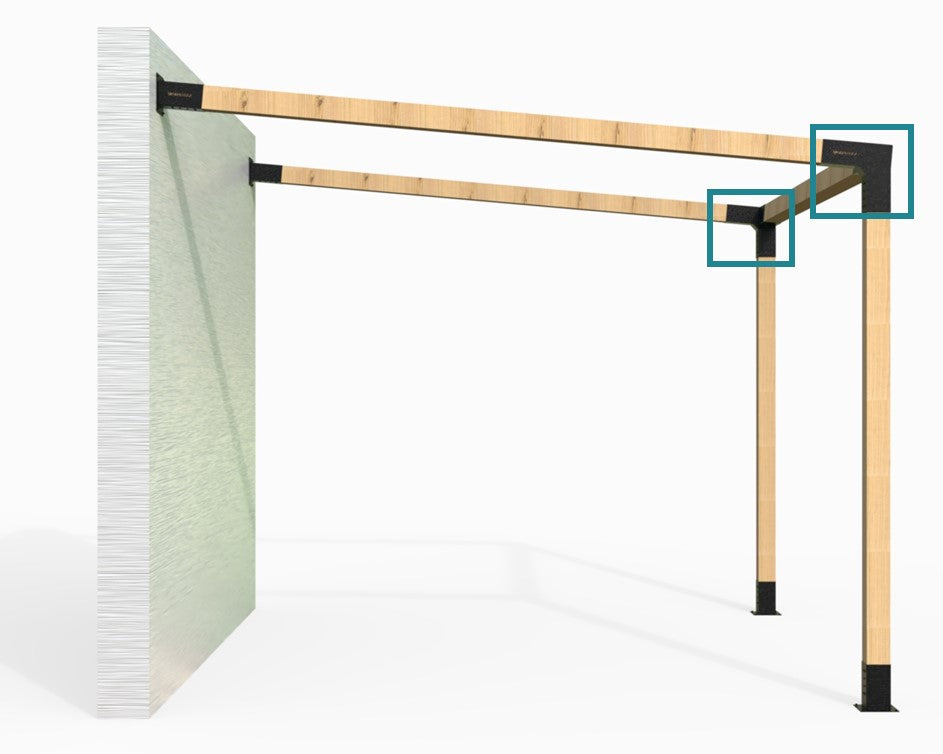

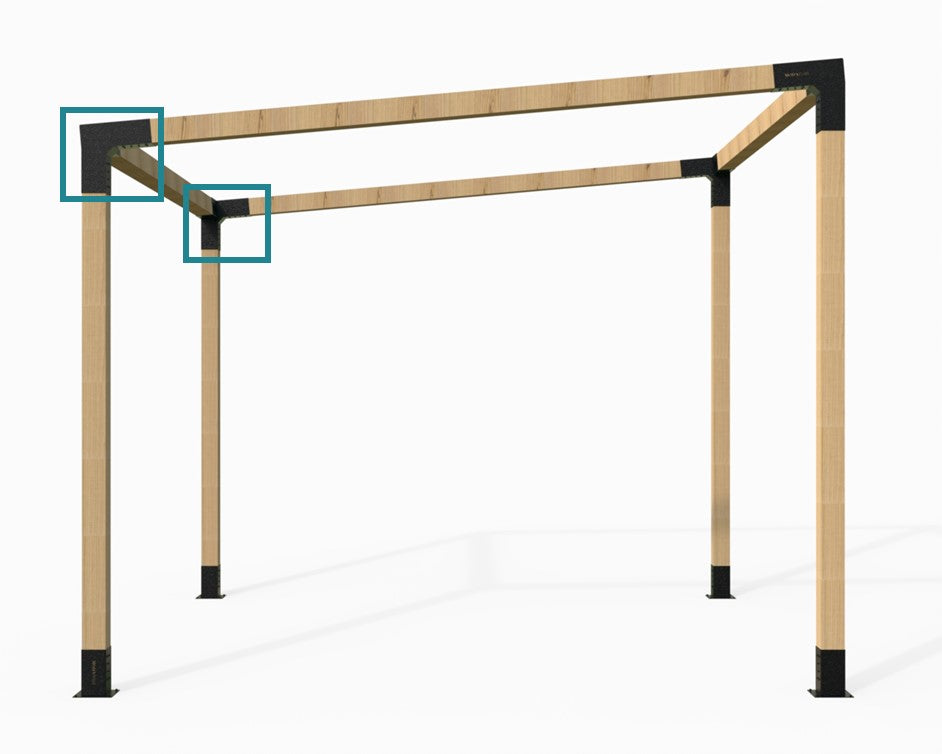

You can customize your pergola up to 2.5m in height and up to 3.6m spans. For an angled pergola, H1 and H2 will be different. You can estimate H2 based on H1 and the span of the sloped post using the following formula:

H2 = H1 - (Span x 0.087)

So, if you are using a 2.5m post for H1 and the sloped post is 3m, then the post length needed for H2 is:

H2 = 2.5m - (0.087 x 3m) = 2.5m - 0.261m = 2.239m

Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

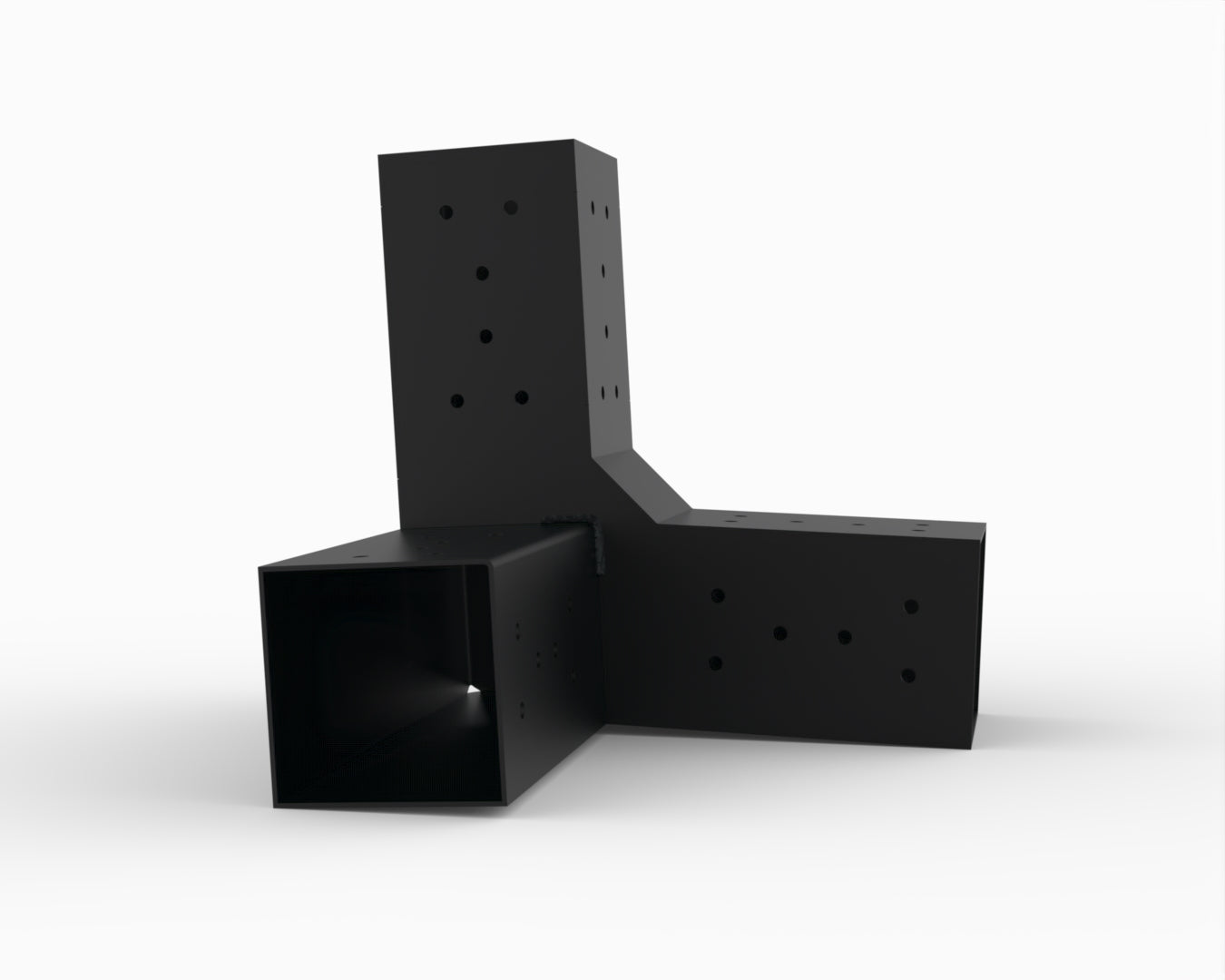

Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 92 x 92mm
Arm Opening (Exterior): 96 x 96mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
